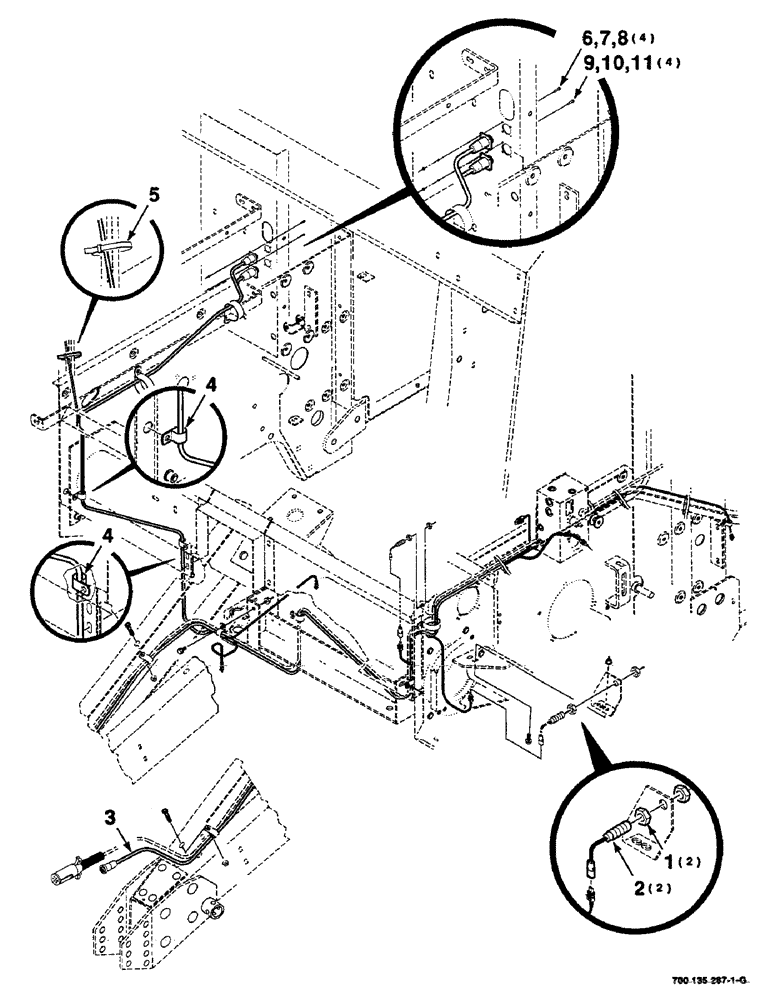

Запчасти Case IH RS451 (4-04) - ELECTRICAL ASSEMBLY, MAIN, WITH MESH WRAP (06) - ELECTRICAL

1

425-1512

JAM NUT,Jam, 3/4"-10, G5

3/4-16 HJN GR 2

2шт.

2

700706398

SENSOR

- PTO

2шт.

3

700716052

HARNESS

- main (With mesh wrap)

1шт.

4

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

6

182-5

SCREW,Sl Pan Hd, #4 - 40 x 3/8"

4шт.

7

492-11004

LOCK WASHER,#4

Washer, Lock, #4

4шт.

8

225-14104

NUT,#4-40

4шт.

9

440-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

#6-32 X 3/8 CRPHMS GR60M

4шт.

10

492-11006

LOCK WASHER,#6

Washer, Lock, #6

4шт.

11

225-14106

NUT,#6-32

4шт.
