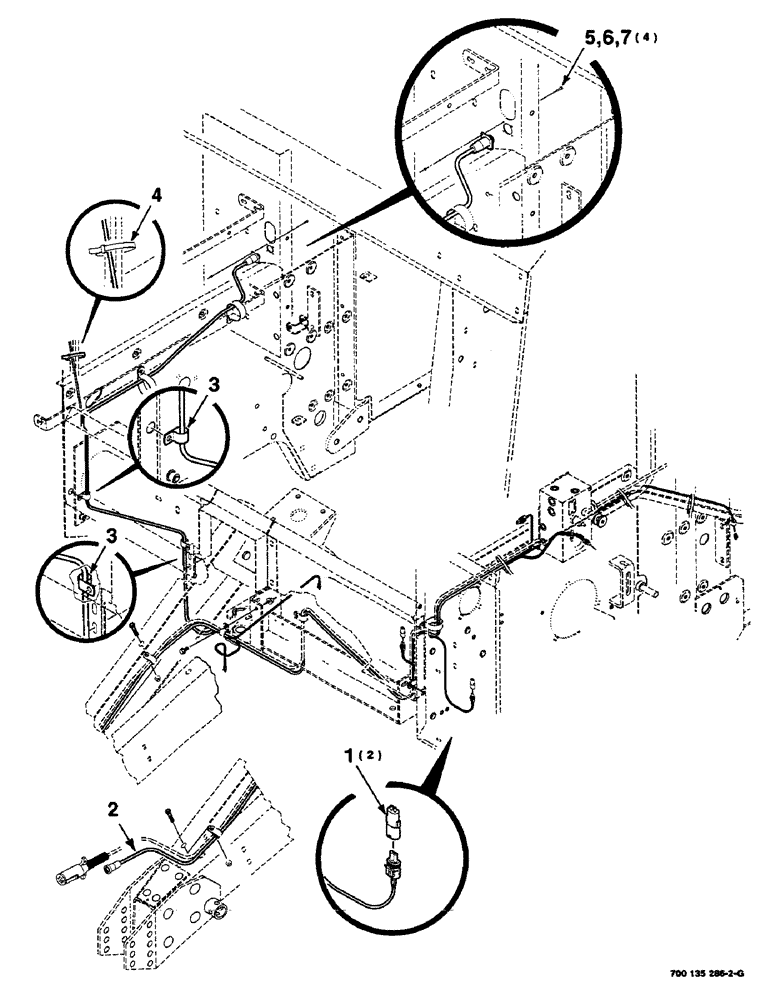

Запчасти Case IH RS451 (4-02) - ELECTRICAL ASSEMBLY, MAIN, WITHOUT MESH WRAP (06) - ELECTRICAL

1

225127C1

PLUG

2шт.

2

700717927

HARNESS

- wire, main (Without mesh wrap)

1шт.

3

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

5

182-5

SCREW,Sl Pan Hd, #4 - 40 x 3/8"

4шт.

6

492-11004

LOCK WASHER,#4

Washer, Lock, #4

4шт.

7

225-14104

NUT,#4-40

4шт.
