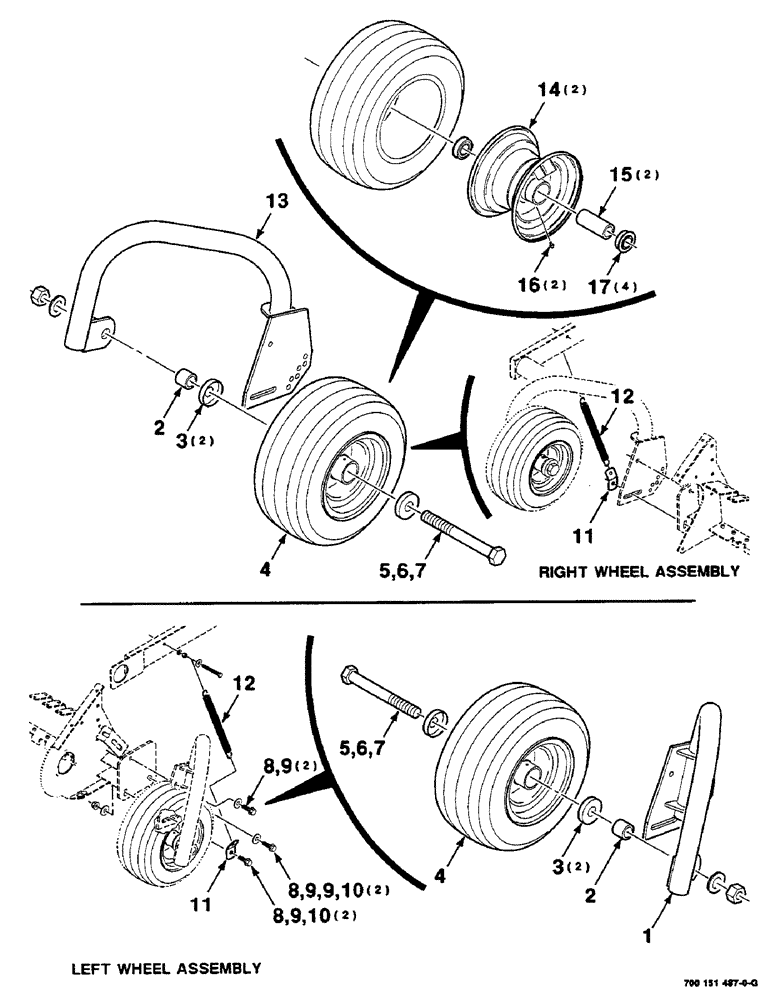

Запчасти Case IH RS451 (3-10) - PICKUP GAUGE WHEEL AND SUPPORT ASSEMBLIES Pickup

1

700147500

STRUT

WA - left

1шт.

2

6651772

SPACER

2шт.

3

700127756

RING

- grass

4шт.

4

700716366

WHEEL

- assembly (Includes items 14, 15, 16 and 17)

2шт.

5

413-16128

BOLT,Hex, 1" - 8 x 8", Gr 5

1-8 X 8 C

2шт.

6

705574

WASHER,1 1/8" x 2" x .156", HDN

2шт.

7

232-41116

LOCK NUT,1"-8, GC

NUT, LOCK, 1"-8, GC

2шт.

8

8701237

BOLT

1/2-13 X 1-1/2 HFS GR8

6шт.

9

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

8шт.

10

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

4шт.

11

700150878

SPRING

TAB - spring

2шт.

12

700708977

SPRING

- extension

2шт.

13

700147501

STRUT

WA - right

1шт.

14

700716367

WHEEL

2шт.

15

700714562

SPACER

2шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

17

700714371

FLANGED BEARING

BEARING - flange

4шт.
