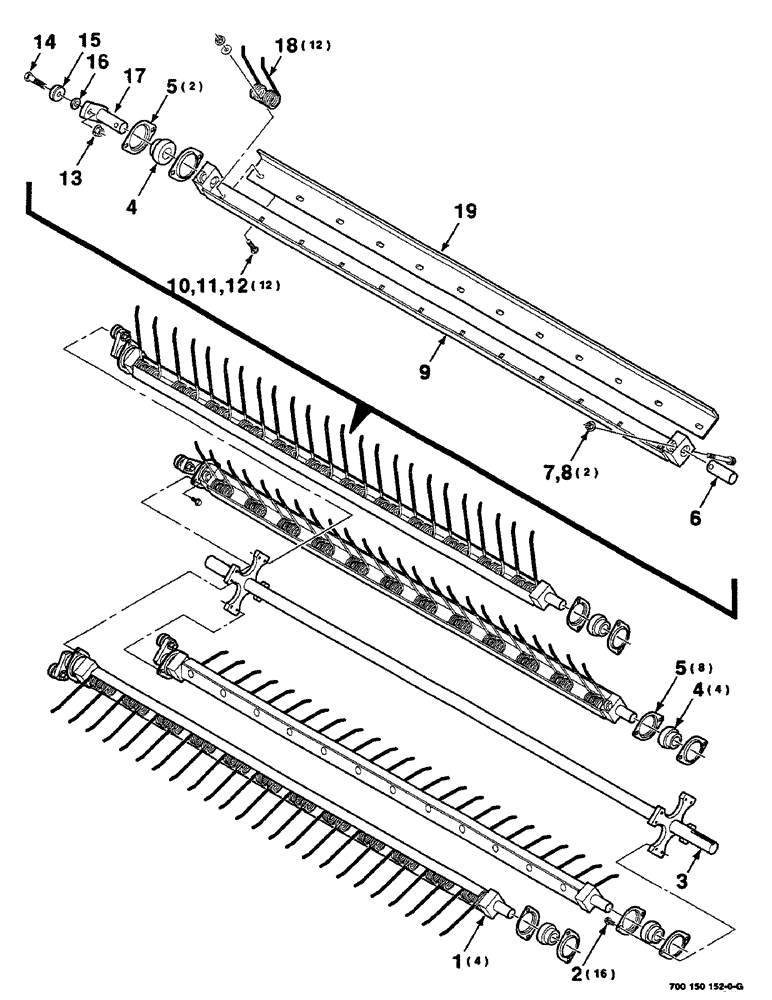

Запчасти Case IH RS451 (3-06) - PICKUP ROTOR ASSEMBLY Pickup

1

700147559

ANGLE

ASSEMBLY

4шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

16шт.

3

700150153

ROTOR

WA

1шт.

4

700708095

SPHERICAL BEARING

BEARING - spherical

5шт.

5

581469R1

FLANGE,Bearing

- bearing

10шт.

6

700147564

SHAFT

- left

1шт.

7

61-736

HEX SOC SCREW,7/16"-14 x 2 1/4"

7/16-14 X 2-1/4 HSHCS SPL

2шт.

8

704452

SPRING

7/16-14 HFTLN GR/G

2шт.

9

700147560

ANGLE

WA - tine

1шт.

10

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

12шт.

11

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

12шт.

12

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

12шт.

13

700707867

NUT

1/2-20 HFTLN GR/G

1шт.

14

428-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

1/2-20 X 2 C GR8

1шт.

15

700720050

CAM FOLLOWER

BEARING - cam follower

1шт.

16

700137750

SPACER

1шт.

17

700135875

CRANK

WA

1шт.

18

700714826

TORSION SPRING,Coiled, 2 Prong, 177mm L

- double

12шт.

19

700147565

ANGLE

1шт.
