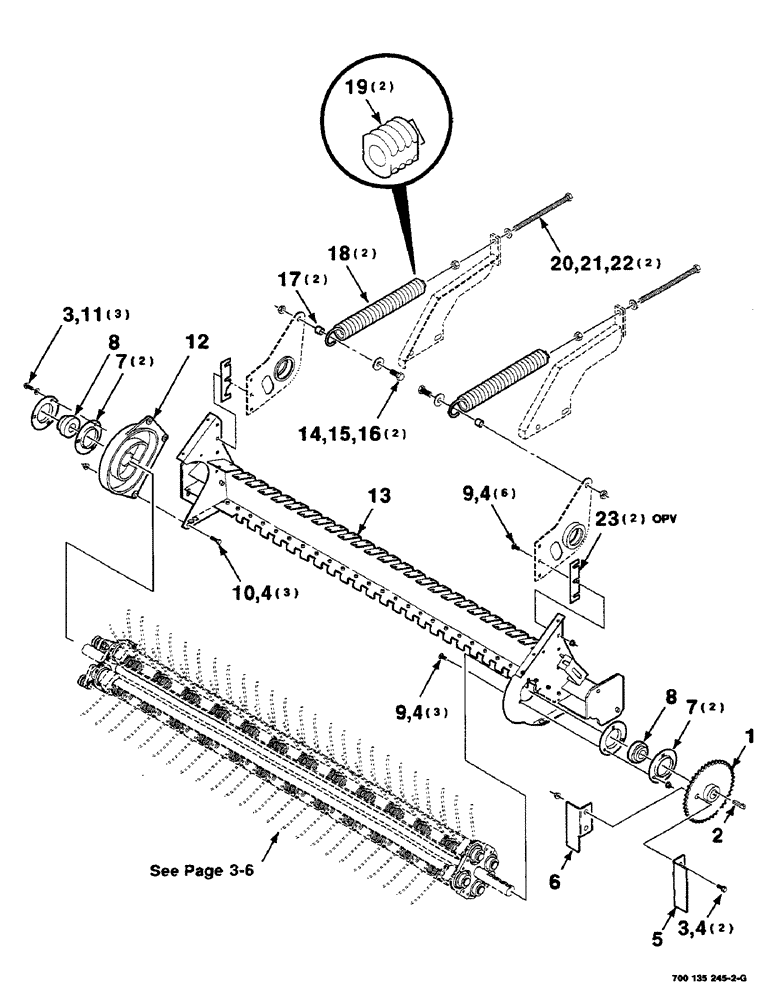

Запчасти Case IH RS451 (3-04) - PICKUP FRAME, FLOTATION AND SUPPORT ASSEMBLIES Pickup

1

700132129

SPROCKET ASSY.

SPROCKET WA - 43 tooth

1шт.

2

Q3929

KEY,Gib, 5/16" Sq x 1 1/2"

5/16 X 1-1/2 KEY - gib

1шт.

3

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

5шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

14шт.

5

700132130

SLINGER

- outer

1шт.

6

700132131

SLINGER

- inner

1шт.

7

617863R1

FLANGED BEARING

4шт.

8

700708091

SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm

BEARING - spherical

2шт.

9

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

9шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

11

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

3шт.

12

700116125

HOUSING

CAMTRACK - right

1шт.

13

700150121

FRAME

WA - pickup

1шт.

14

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

15

700711165

WASHER,17.3mm ID x 45.21mm OD x 4.06mm Thk

5/8 HARDENED WIDE PLAIN WASHER

2шт.

16

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 HJN GR2

2шт.

17

159723

SPACER

2шт.

18

700150176

SPRING

ASSEMBLY (Includes item 19)

2шт.

19

700150150

PLUG

- spring

2шт.

20

702282

BOLT,Hex, 5/8" - 11 x 10", Gr 5

5/8-11 X 10 FTB

2шт.

21

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

22

425-1010

NUT,5/8"-11, G5

2шт.

23

700132128

SHIM

2шт.
