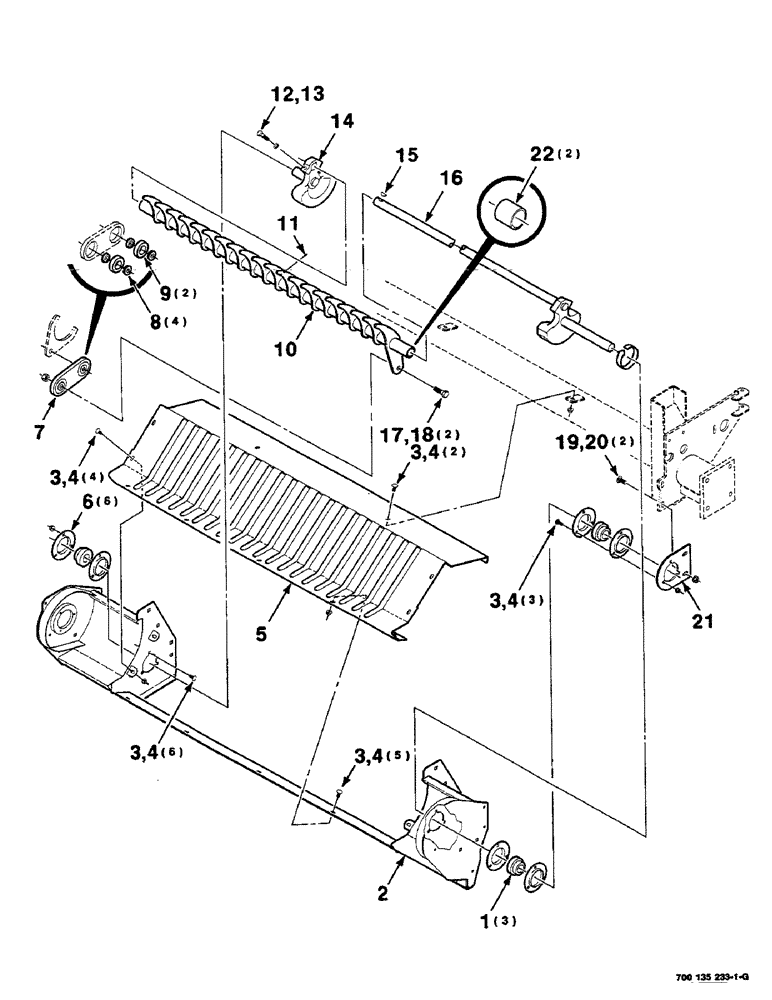

Запчасти Case IH RS451 (2-30) - STUFFER FRAME, AND SUPPORT ASSEMBLIES Driveline

1

700708091

SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm

BEARING - spherical

3шт.

2

700135713

FRAME

WA - stuffer

1шт.

3

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

20шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

20шт.

5

700135711

GRATE

1шт.

6

617863R1

FLANGED BEARING

6шт.

7

700132212

LINK

ASSEMBLY (Includes items 8 and 9)

1шт.

8

700124038

BUSHING,16.27mm ID x 34.92mm OD x 10mm L

- bearing

4шт.

9

616154R92

BEARING, ROLLER, CYL,16 mm

BEARING - cylindrical

2шт.

10

700132200

SHAFT ASSY.

STUFFER WA (Includes item 22)

1шт.

11

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

1шт.

12

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

14

700132088

CRANK

WA - idler, right

1шт.

15

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

16

700132087

CRANK

WA - drive, left

1шт.

17

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

C Hex, 5/8"-11 x 2", G5

2шт.

18

230-41110

LOCK NUT,5/8"-11, GA

5/8-11 HTLN GR/B

2шт.

19

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

2шт.

20

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

21

700135946

PLATE

1шт.

22

740514

BUSHING,31.81mm ID x 38.2mm OD x 50.8mm L

- bronze

2шт.
