Запчасти Case IH RS451 (2-28) - STUFFER, AUGER AND DRIVE ASSEMBLIES, RIGHT Driveline

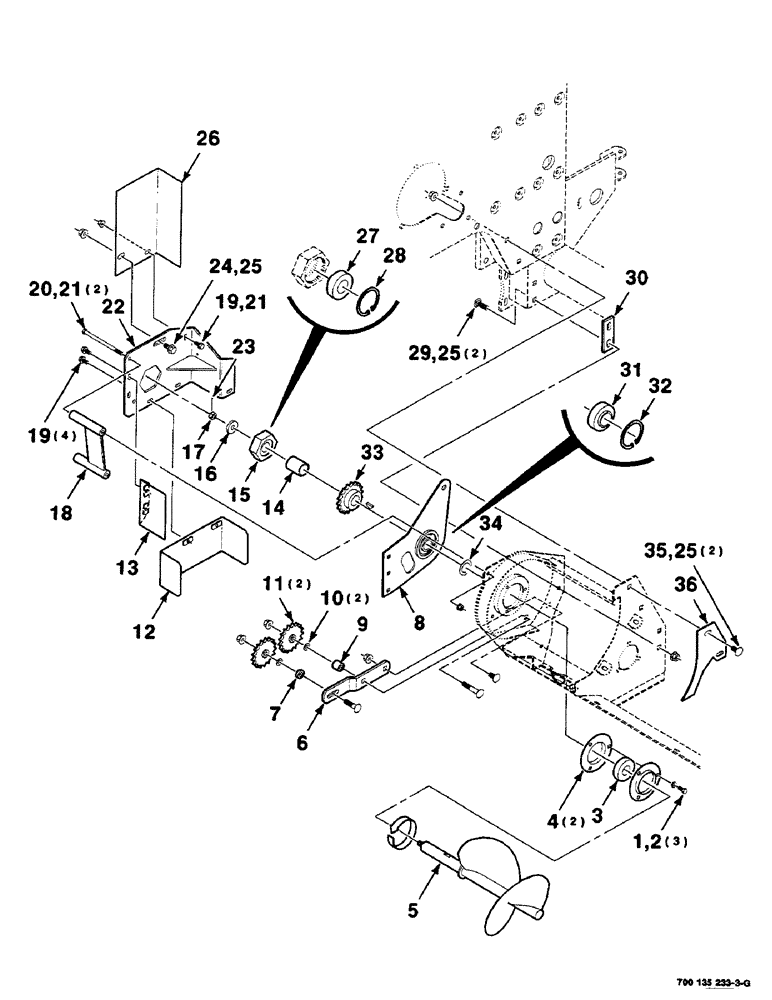

Схема запчастей Case IH RS451 - (2-28) - STUFFER, AUGER AND DRIVE ASSEMBLIES, RIGHT Driveline
23
25
6
12
8
29
30
16
15
2
21
20
25
14
9
24
26
5
4
11
18
35
13
34
19
36
27
17
25
22
3
19
28
21
1
10
31
32
7
33

Артикул

Название

Примечание

Количество

1

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

2

492-11038

LOCK WASHER,3/8"

3шт.

3

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

BEARING - less collar

1шт.

4

617863R1

FLANGED BEARING

2шт.

5

700150090

AUGER

WA - right

1шт.

6

700150076

SUPPORT

1шт.

7

6582696

SPACER

1шт.

8

700150097

SUPPORT

ASSEMBLY - right (Includes item 31 and 32)

1шт.

9

700150104

SPACER

1шт.

10

95-81100

WASHER,33/64" x 7/8" x .049"

1/2 X 18 GAUGE NRMB

2шт.

11

700716888

SPROCKET ASSY.

SPROCKET - idler, 17 tooth

2шт.

12

700135742

SHIELD

WA - right

1шт.

13

700150081

SHIELD

WA - right

1шт.

14

6587869

SPACER

1шт.

15

700150087

HUB

ASSEMBLY (Includes items 27 and 28)

1шт.

16

6181994

WASHER

- special

1шт.

17

74344

NUT

1/2-20 SHN

1шт.

18

700150079

SUPPORT

WA

1шт.

19

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

5шт.

20

413-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

3/8-16 X 6 C

2шт.

21

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

3шт.

22

700150073

SUPPORT

WA - right

1шт.

23

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

24

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2-13 X 1 HFS GR8

1шт.

25

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

5шт.

26

700151504

SHIELD

1шт.

27

586649R92

BEARING, ROLLER, CYL,31.75mm ID x 62mm OD x 18mm W

- cylindrical

1шт.

28

100-21244

SNAP RING,2.44", Int, #244

Ring, Snap, 2.44", Int, #244

1шт.

29

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

2шт.

30

700135747

PLATE

1шт.

31

587015R92

BEARING, ROLLER, CYL,31.75mm ID x 72mm OD x 19mm W

- cylindrical

1шт.

32

740415

RING, SNAP

RING - retaining

1шт.

33

700150100

SPROCKET ASSY.

SPROCKET WA - 18 tooth (Includes items 27 and 28)

1шт.

34

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 18 GAUGE NRMB

1шт.

35

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

2шт.

36

700135748

PLATE

1шт.

Выбрано товаров: 36
