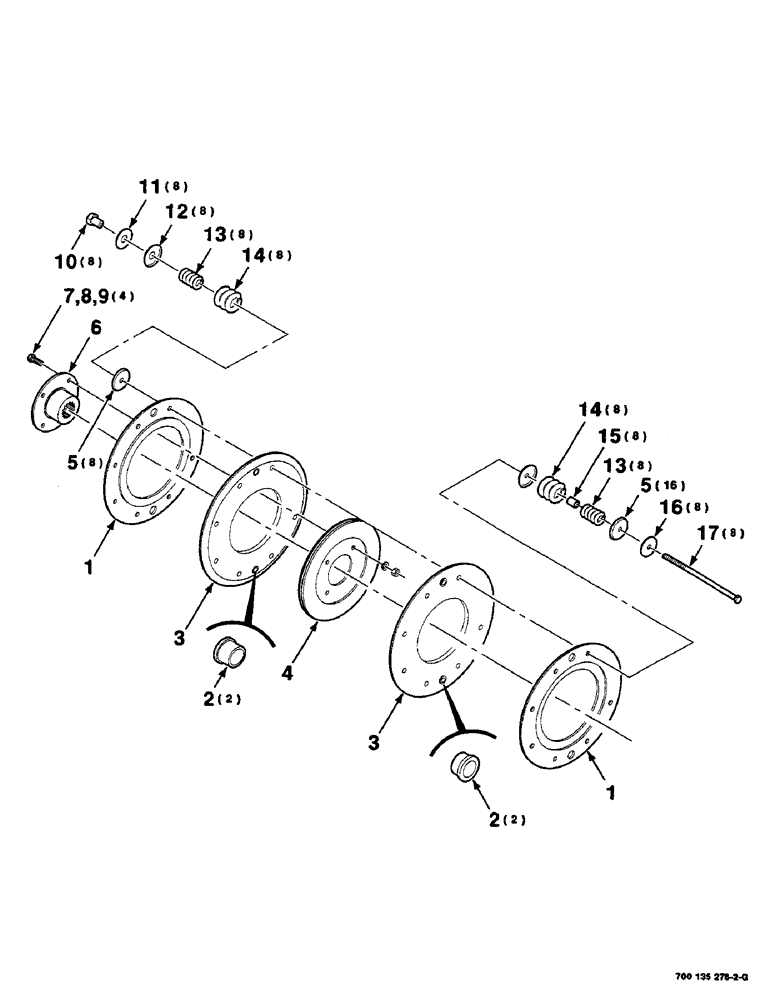

Запчасти Case IH RS451 (2-20) - CLUTCH ASSEMBLY Driveline

1

700127888

DISC

- compression

2шт.

2

700713280

BUSHING

- shouldered

4шт.

3

700127884

DISC

- assembly (Includes item 3)

2шт.

4

700711087

DISC

- friction

1шт.

5

700150204

RETAINER

24шт.

6

700150205

HUB

WA

1шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

8

492-11038

LOCK WASHER,3/8"

4шт.

9

425-106

NUT,3/8"-16, Cl 5

4шт.

10

700150207

SPECIAL NUT

3/8-16 SHOULDER NUT

8шт.

11

495-21069

WASHER,5/8"

5/8 WIDE PLAIN WASHER

8шт.

12

700150209

RETAINER

8шт.

13

700717208

SPRING

- compression

16шт.

14

700717209

SPRING

- compression

16шт.

15

700129257

SPACER

8шт.

16

51200237

WASHER

- special

8шт.

17

700717711

BOLT

3/8-16 X 5 C SPECIAL

8шт.
