Запчасти Case IH RS451 (2-12) - PICKUP AND AUGER DRIVE ASSEMBLY Driveline

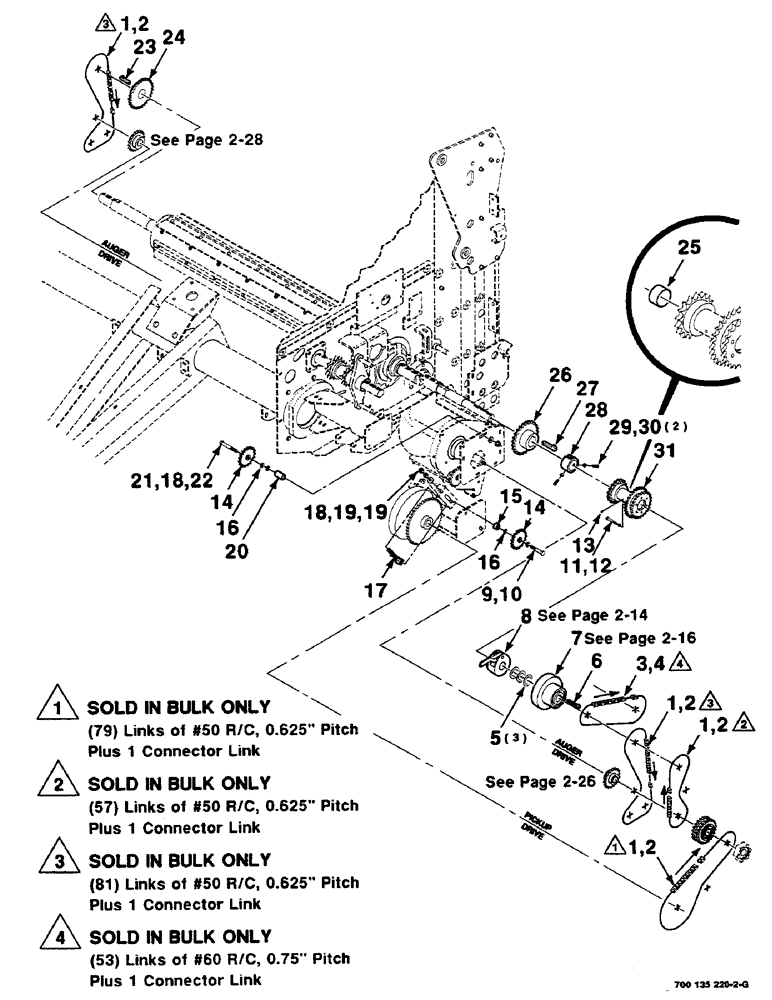

Схема запчастей Case IH RS451 - (2-12) - PICKUP AND AUGER DRIVE ASSEMBLY Driveline
1
28
2
17
20
19
11
4
18
1
1
7
24
2
28
22
30
2
16
27
2
8
21
10
3
25
5
15
23
1
31
14
6
14
26
18
16
9
13
19
12

Артикул

Название

Примечание

Количество

1

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - roller, #50 (10 Foot Bulk)

4шт.

2

241-1315

LINK, CONNECTING

LINK - connector, #50 R/C

4шт.

3

7086002

CHAIN (AG)

CHAIN - roller, #60 (10 Foot Bulk)

1шт.

4

241-1316

LINK,19.05mm Pitch

LINK - connector, #60 R/C

1шт.

5

195-2139

WASHER,36.52mm ID x 57.15mm OD x 2.03mm Thk

1-3/8 X 14 GAUGE NRMB

3шт.

6

Q3936

KEY,Gib, 5/16" Sq x 2 1/2"

5/16 X 2-1/2 KEY - gib

1шт.

7

700133291

CLUTCH

ASSEMBLY

1шт.

8

700134911

HUB

ASSEMBLY

1шт.

9

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

1шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

11

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16-18 X 2-1/4 C

1шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

14

700716888

SPROCKET ASSY.

SPROCKET - idler, 17 tooth

2шт.

15

6537526

SPACER

1шт.

16

95-81101

WASHER,0.52" ID x 0.88" OD x 0.07" Thk

1/2 X 14 GAUGE NRMB

2шт.

17

700147510

SPECIAL BOLT

DRAWBOLT WA - plated

1шт.

18

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

20

6234710

SPACER

1шт.

21

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1/2-13 X 3-1/2 C

1шт.

22

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

23

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

- gib, 3/8 x 1-1/2

1шт.

24

700150117

SPROCKET ASSY.

SPROCKET WA - 27 tooth

1шт.

25

700715085

BRONZE BUSHING

BUSHING - bronze

1шт.

26

700150114

SPROCKET ASSY.

SPROCKET WA - 25 tooth

1шт.

27

61747

KEY

1/2 X 2-1/2 GIB KEY

1шт.

28

700135556

SPACER

1шт.

29

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

3/8-16 X 1 CPSQHSS NP

2шт.

30

425-106

NUT,3/8"-16, Cl 5

2шт.

31

700717790

SPROCKET ASSY.

SPROCKET WA - 17, 27, 24 tooth (Includes item 25)

1шт.

Выбрано товаров: 31
