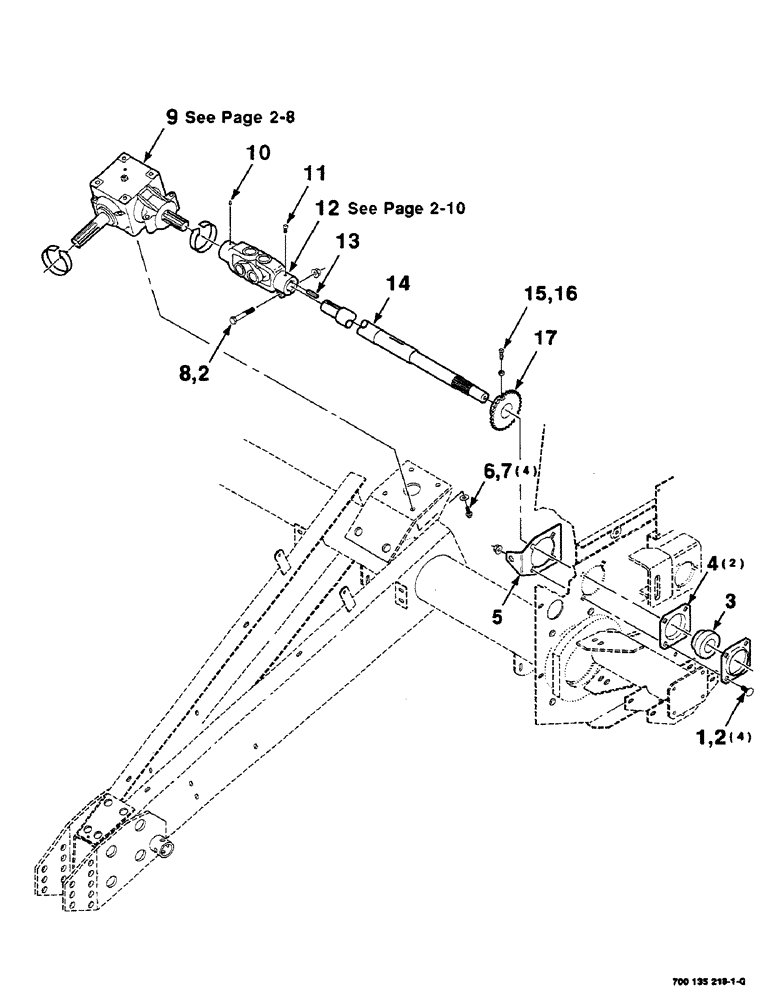

Запчасти Case IH RS451 (2-06) - MAIN DRIVE ASSEMBLY Driveline

1

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

4шт.

2

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

5шт.

3

51318

BEARING

- spherical

1шт.

4

76079C1

FLANGE

BEARING - flange

2шт.

5

700151463

SUPPORT

1шт.

6

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1/2-13 X 1-1/4 HFS GR8

4шт.

7

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

4шт.

8

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 X 3 C

1шт.

9

700717910

GEARBOX ASSY

GEARBOX ASSEMBLY

1шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

11

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

3/8-16 X 3/4 CPSQHSS

1шт.

12

700718371

YOKE

U-JOINT ASSEMBLY - double

1шт.

13

Q1443

KEY,5/16" Sq x 1 1/2", Par

5/16 X 1-1/2 KEY

1шт.

14

700135540

SHAFT

- drive

1шт.

15

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

3/8-16 X 1 CPSQHSS NP

1шт.

16

425-106

NUT,3/8"-16, Cl 5

1шт.

17

700151466

SPROCKET ASSY.

SPROCKET WA - 30 tooth

1шт.
