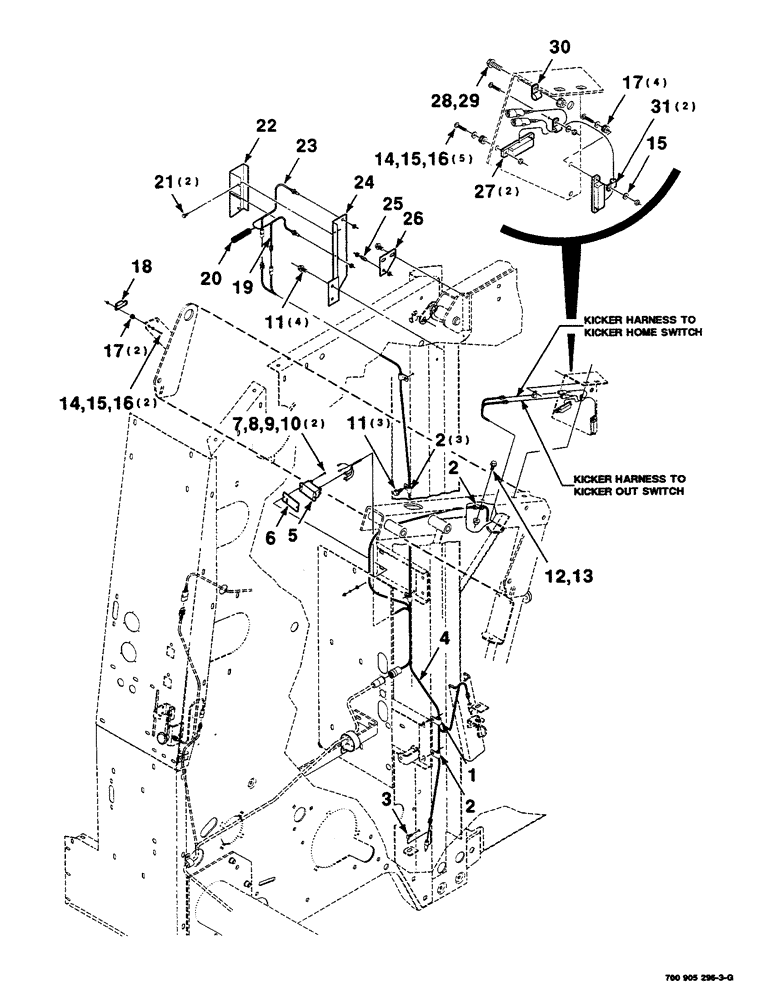

Запчасти Case IH RS451 (9-30) - BALE KICKER KIT, ELECTRICAL ASSEMBLY Decals & Attachments

1

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line 1/2", Insul, 1/2" Bolt

1шт.

2

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Line 3/8", Insul, 3/8" Bolt

5шт.

3

700718506

CLIP

- plastic, barbed

1шт.

4

700716058

HARNESS

- wire, kicker (Without mesh wrap)

1шт.

5

700716828

RELAY

- electrical

1шт.

6

700718448

GASKET

- relay

1шт.

7

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

GR60M Cross Pan Hd, #8-32 x 1/2"

2шт.

8

495-21019

WASHER,#8

2шт.

9

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

10

225-14108

NUT,#8-32

H GR2 #8-32

2шт.

11

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHTCTS

7шт.

12

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

1шт.

13

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

1шт.

14

700710188

SCREW

#6-32 X 3/4 CRPHMS (Stainless)

7шт.

15

700710187

WASHER

#6 PLAIN WASHER - special

8шт.

16

700710189

LOCK NUT

#6-32 LHSN (Stainless)

7шт.

17

700710199

GROMMET

6шт.

18

700709996

SWITCH

ACTUATOR - switch

1шт.

19

700718012

SWITCH

- assembly (N.C.)

1шт.

20

702400102

CONDUIT

- split

1шт.

21

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

22

700150915

SHIELD

1шт.

23

700119161

SWITCH

- assembly (N.O.)

1шт.

24

700150916

MOUNTING PARTS

MOUNTING - switch

1шт.

25

700710211

ACTUATOR

1шт.

26

700135943

MOUNTING PARTS

MOUNTING - actuator

1шт.

27

700710208

ROTARY SWITCH

SWITCH (N.O.)

2шт.

28

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

1шт.

29

1703354

NUT

1/4-20 HFTLN GR/G

1шт.

30

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

31

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

Line 5/16", Insul, 1/4" Bolt

2шт.
