Запчасти Case IH RS451 (9-28) - BALE KICKER KIT, CONTINUED Decals & Attachments

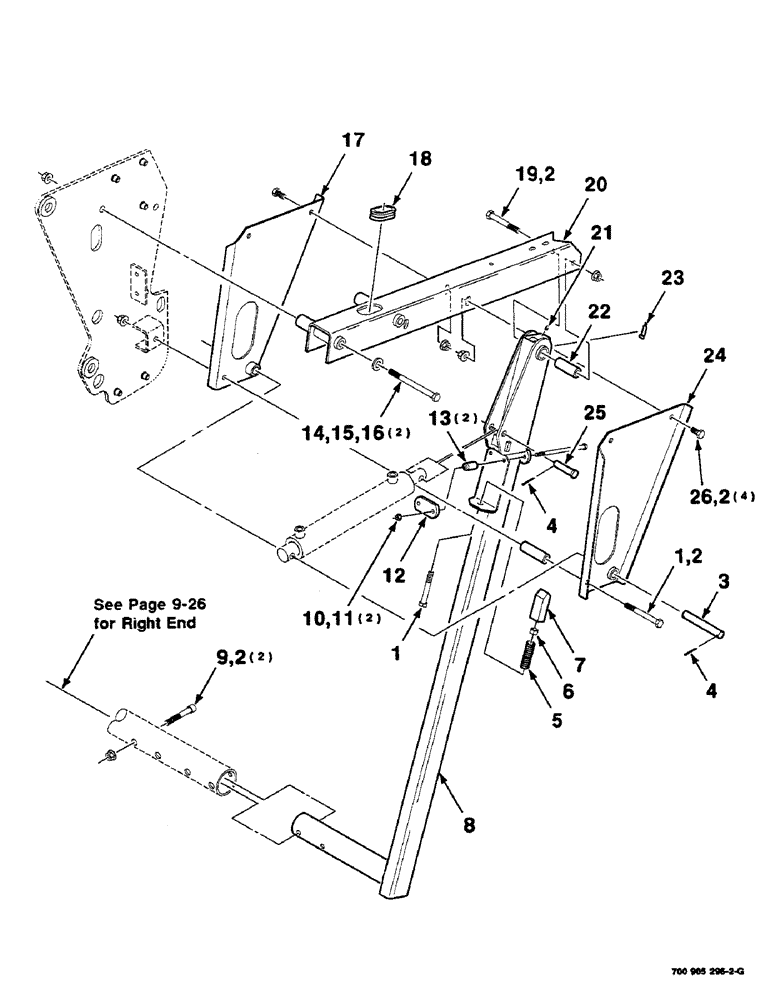

Схема запчастей Case IH RS451 - (9-28) - BALE KICKER KIT, CONTINUED Decals & Attachments
10
2
1
6
23
7
4
2
15
21
9
8
25
24
14
2
20
1
13
16
4
3
17
11
2
19
26
18
12
5
22

Артикул

Название

Примечание

Количество

1

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1/2-13 X 4-1/2 C

2шт.

2

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

8шт.

3

700132165

PIN

1шт.

4

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

2шт.

5

700716851

SPRING

- compression

1шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

7

700135979

LATCH

1шт.

8

700150833

STRUT

WA - left

1шт.

9

61-35052

HEX SOC SCREW,1/2"-13 x 3 1/4"

1/2-13 X 3-1/4 HSHCS SPECIAL

2шт.

10

413-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

3/8-16 X 6 C

2шт.

11

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

12

700135976

PLATE

1шт.

13

700135978

SPACER

2шт.

14

413-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

5/8-11 X 7-1/2 C

2шт.

15

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

16

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

17

700150831

MOUNTING PARTS

CHANNEL WA - right

1шт.

18

8027427

GROMMET

1шт.

19

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

1шт.

20

700150218

CHANNEL

WA - left

1шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

22

700132166

SPACER

1шт.

23

7889306

DECAL

- lube

1шт.

24

700150829

MOUNTING PARTS

CHANNEL WA - left

1шт.

25

700708068

CLEVIS PIN,15.77mm OD x 68.66mm L

5/8 X 2-1/2 CLEVIS PIN

1шт.

26

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

Выбрано товаров: 26
