(9-24) - HYDRAULIC CYL. ASSY., PICKUP LIFT, 700716327 HYD. CYL. ASSY. COMPLETE, 1-1/2" BORE X 7-1/4" STROKE

Запчасти Case IH RS451 (9-24) - HYDRAULIC CYL. ASSY., PICKUP LIFT, 700716327 HYD. CYL. ASSY. COMPLETE, 1-1/2" BORE X 7-1/4" STROKE Decals & Attachments

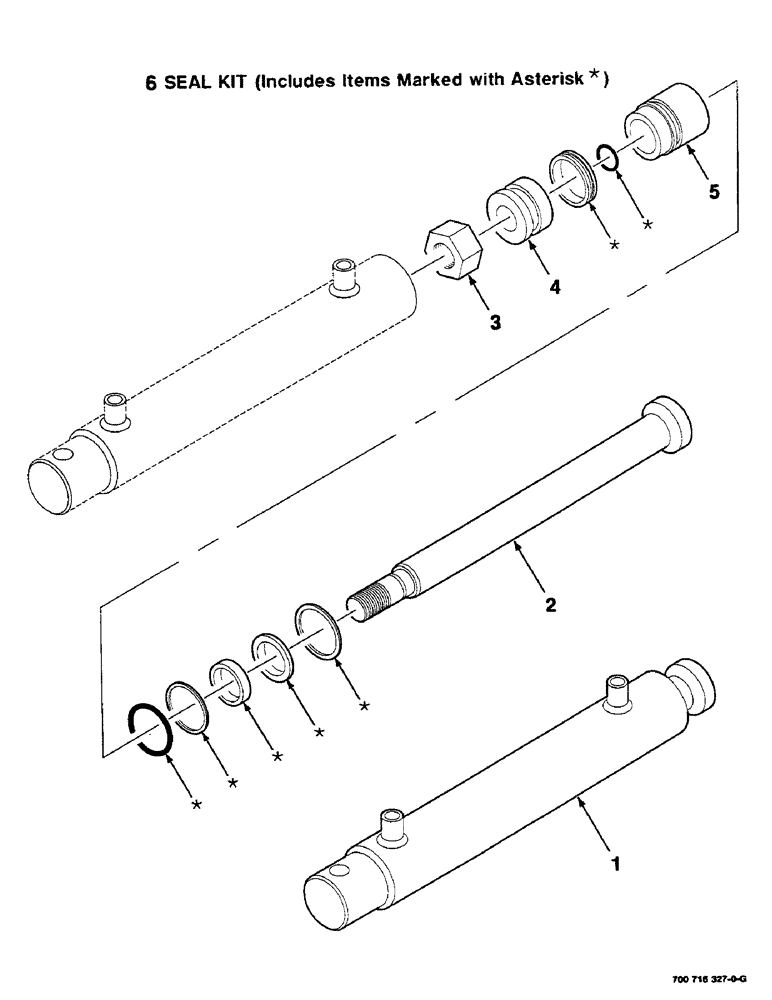

Схема запчастей Case IH RS451 - (9-24) - HYDRAULIC CYL. ASSY., PICKUP LIFT, 700716327 HYD. CYL. ASSY. COMPLETE, 1-1/2" BORE X 7-1/4" STROKE Decals & Attachments
3
2
1
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700716327

CYLINDER

HYDRAULIC CYLINDER ASM. COMPLETE (1-1/2 Inch Bore x 7-1/4 Inch Stroke)

1шт.

2

700716691

ROD

PISTON ROD

1шт.

3

700707412

LOCK NUT

3/4-16 NUT LOCK

1шт.

4

700716690

PISTON

1шт.

5

700716692

GUIDE

PISTON GUIDE

1шт.

6

700716693

KIT

SEAL AND O-RING REPAIR KIT, Includes items in art marked with asterisk

1шт.
