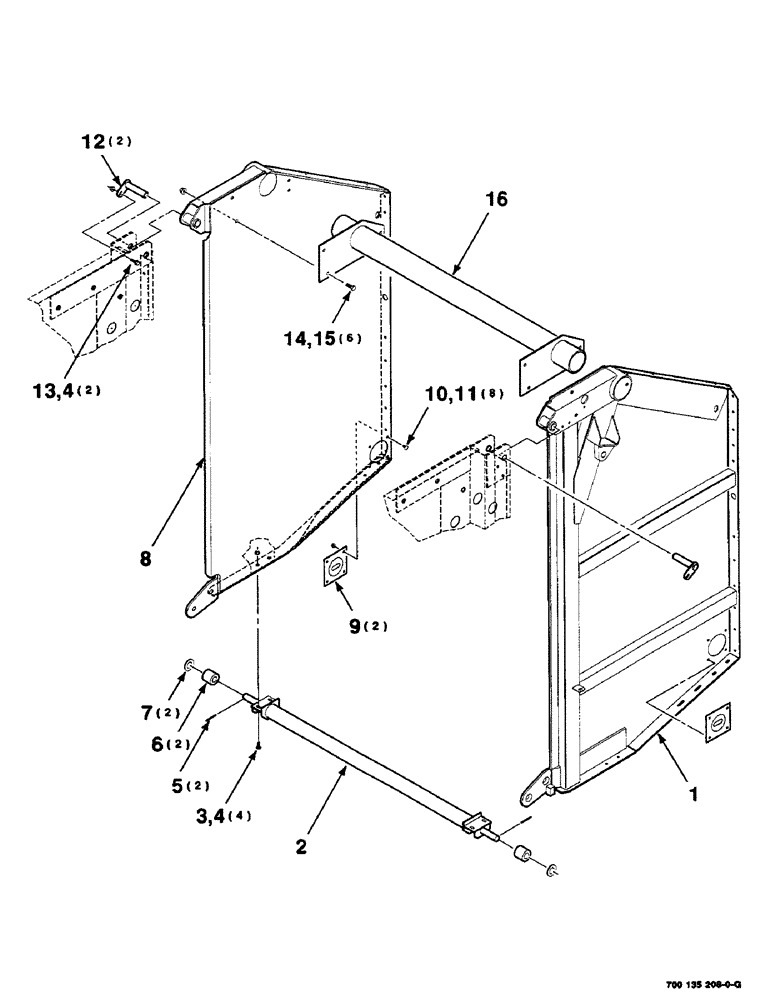

Запчасти Case IH RS451 (5-02) - TAILGATE ASSEMBLY (16) - BALE EJECTOR

1

700135436

PANEL

SIDE WA - left

1шт.

2

700135874

SHAFT

WA

1шт.

3

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

6шт.

5

38-11632

LOCK PIN,1/4" x 2", Slotted

PIN, LOCK, 1/4" x 2", Slotted

2шт.

6

700132082

BUSHING

2шт.

7

705574

WASHER,1 1/8" x 2" x .156", HDN

2шт.

8

700135437

PANEL

SIDE WA - right

1шт.

9

700125148

PLUG

2шт.

10

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

8шт.

11

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

8шт.

12

700135411

PIN

WA

2шт.

13

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.

14

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

6шт.

15

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

6шт.

16

700135403

TUBE

WA

1шт.
