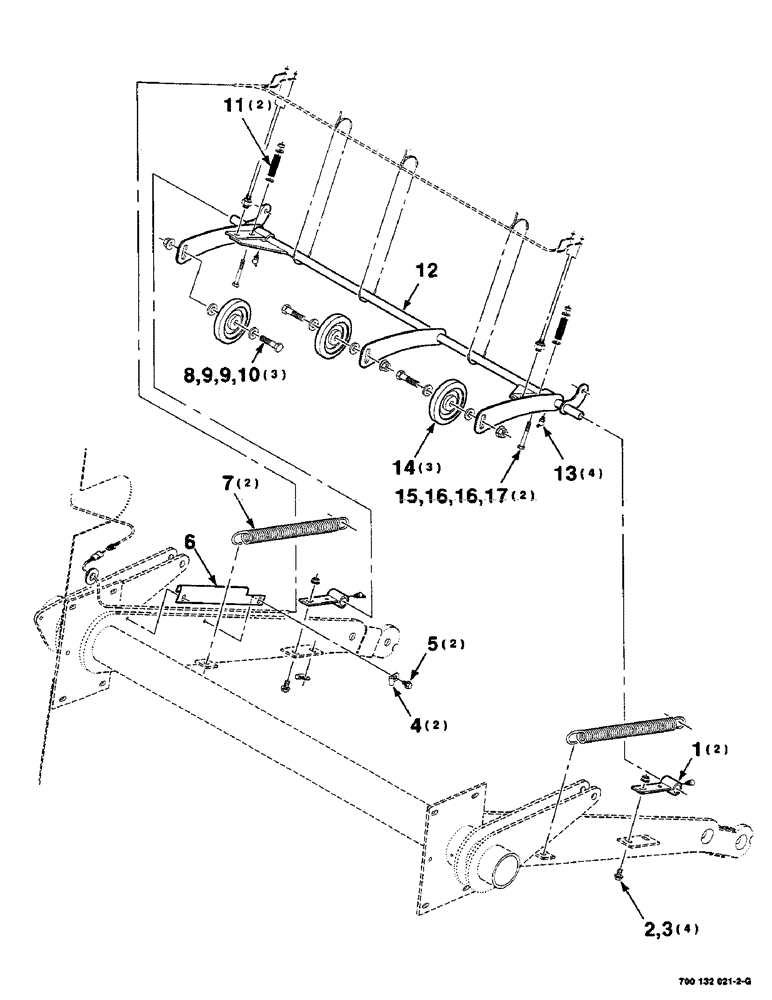

Запчасти Case IH RS451 (6-22) - BALE SHAPE MONITOR ASSEMBLY (14) - BALE CHAMBER

1

700132176

SUPPORT

WA

2шт.

2

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.

5

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

6

700132519

COVER

- wire

1шт.

7

700710130

SPRING

- extension

2шт.

8

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

9

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

6шт.

10

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

3шт.

11

7058266

SPRING

- compression

2шт.

12

700132168

SUPPORT

WA

1шт.

13

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 X 45 DEGREE ZERK

4шт.

14

111767C2

BALL BEARING,1.468" ID x 4.25" OD x 0.875"

IDLER - rubber tire

3шт.

15

703769

SCREW

5/16-18 X 2 3/4 C

2шт.

16

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

4шт.

17

230-4115

LOCK NUT,5/16"-18, GA

5/16-18 HTLN GR/B

2шт.
