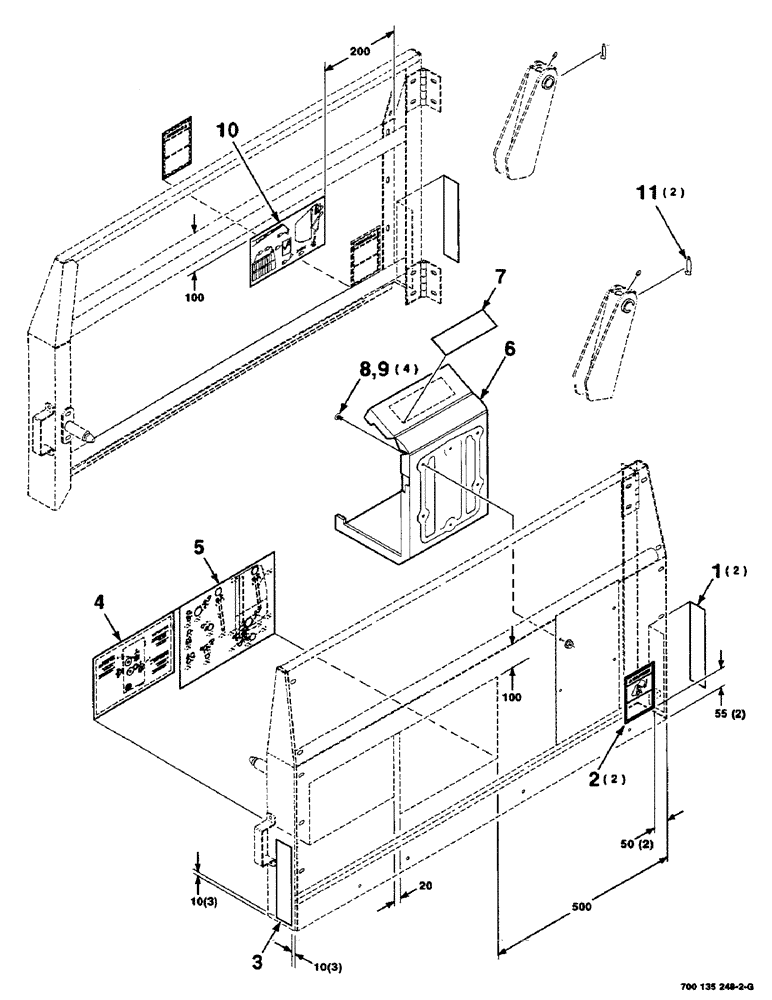

Запчасти Case IH RS451 (9-06) - DECAL AND LOCATION DIAGRAM, OPERATIONAL, CONTINUED Decals & Attachments

Схема запчастей Case IH RS451 - (9-06) - DECAL AND LOCATION DIAGRAM, OPERATIONAL, CONTINUED Decals & Attachments
9
7
8
10
2
1
4
11
6
5
3

Артикул

Название

Примечание

Количество

1

700717402

REFLECTOR

- red

2шт.

2

700718107

DECAL

- danger

2шт.

3

700717403

REFLECTOR

- amber

1шт.

4

700717675

DECAL

- valve adjustment

1шт.

5

700718008

DECAL

- routing

1шт.

6

700714418

HOLDER

- manual

1шт.

7

700714585

DECAL

- manual holder

1шт.

8

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4-20 X 1/2 CRPHMS GR60M

4шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

10

700716313

DECAL

- routing

1шт.

11

7889306

DECAL

- lube

2шт.

Выбрано товаров: 11
