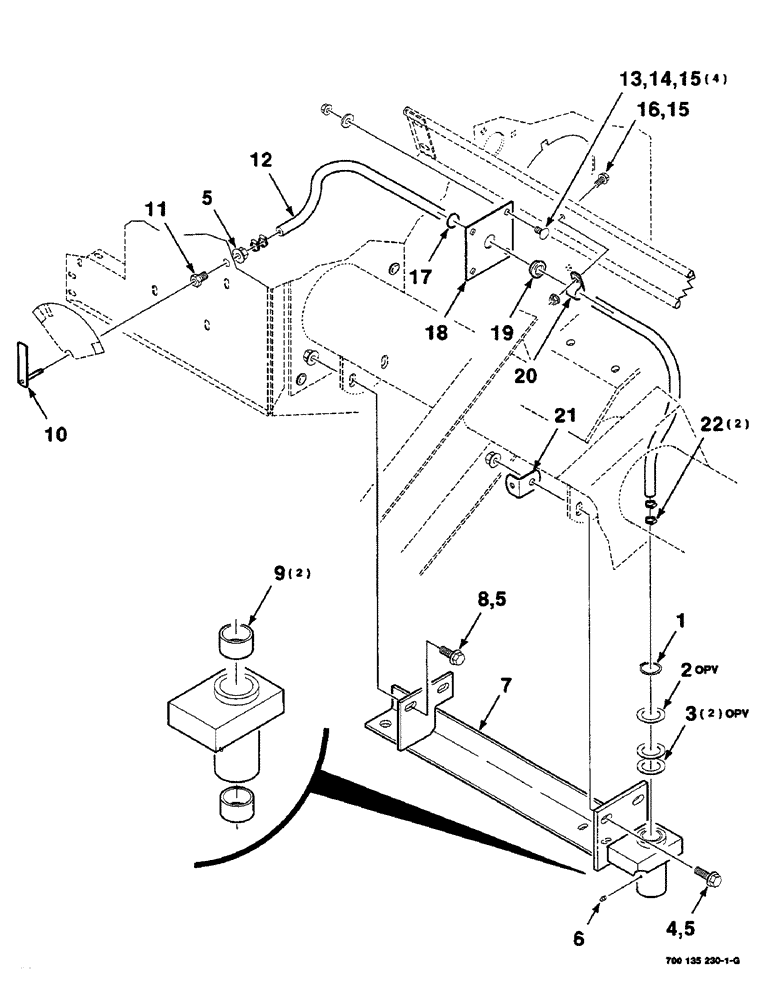

Запчасти Case IH RS451 (6-18) - TWINE THREADER ASSEMBLY (14) - BALE CHAMBER

1

103-11125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

2

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 18 GAUGE NRMB

1шт.

3

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 14 GAUGE NRMB

2шт.

4

8701237

BOLT

1/2-13 X 1-1/2 HFS GR8

1шт.

5

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

3шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

7

700135670

MOUNTING PARTS

MOUNTING WA (Includes item 9)

1шт.

8

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1/2-13 X 1-1/4 HFS GR8

1шт.

9

52779

BRONZE BUSHING

BUSHING - bronze

2шт.

10

700135805

INDICATOR

WA

1шт.

11

700135804

BOLT

- special

1шт.

12

700716275

HYDRAULIC HOSE,0.25" ID x 49.21", SAE 100R2 or SAE 100R16, SAE J517

HOSE

1шт.

13

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

14

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

4шт.

15

231-5146

FLANGE NUT,3/8"-16

5шт.

16

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

1шт.

17

100-11100

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

1шт.

18

700135773

PLATE

1шт.

19

700107977

GUIDE

- twine

1шт.

20

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

21

700150823

SUPPORT

1шт.

22

7721020

HOSE CLAMP

CLAMP - hose

2шт.
