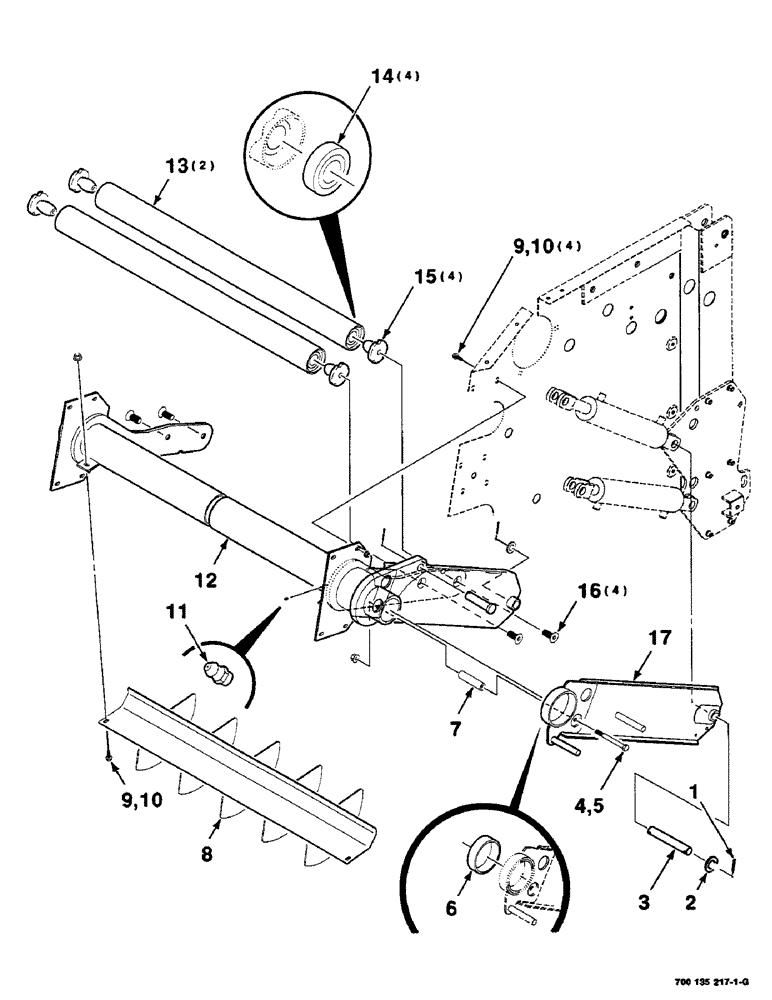

Запчасти Case IH RS451 (6-12) - BELT TENSIONING ROLLER ASSEMBLY (14) - BALE CHAMBER

1

432-1228

COTTER PIN,3/16" x 1 3/4"

3/16" x 1 3/4"

1шт.

2

705574

WASHER,1 1/8" x 2" x .156", HDN

1шт.

3

700135516

PIN

1шт.

4

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2-13 X 5 C

1шт.

5

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

6

700716064

BUSHING

- bronze

1шт.

7

700135518

TUBE,0.562" ID, 25.4 mm OD, 102 mm Length

1шт.

8

700135520

GUIDE

WA - belt

1шт.

9

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

5шт.

10

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

5шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

12

700135701

ARM

WA - upper

1шт.

13

700107934

ROLL

ER ASSEMBLY (Includes item 14)

2шт.

14

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- cylindrical

4шт.

15

700100927

HUB

4шт.

16

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

3/4-10 X 1-3/4 HSFCHCS

4шт.

17

700135537

SUPPORT

CHANNEL WA - upper, outer (Includes item 6)

1шт.
