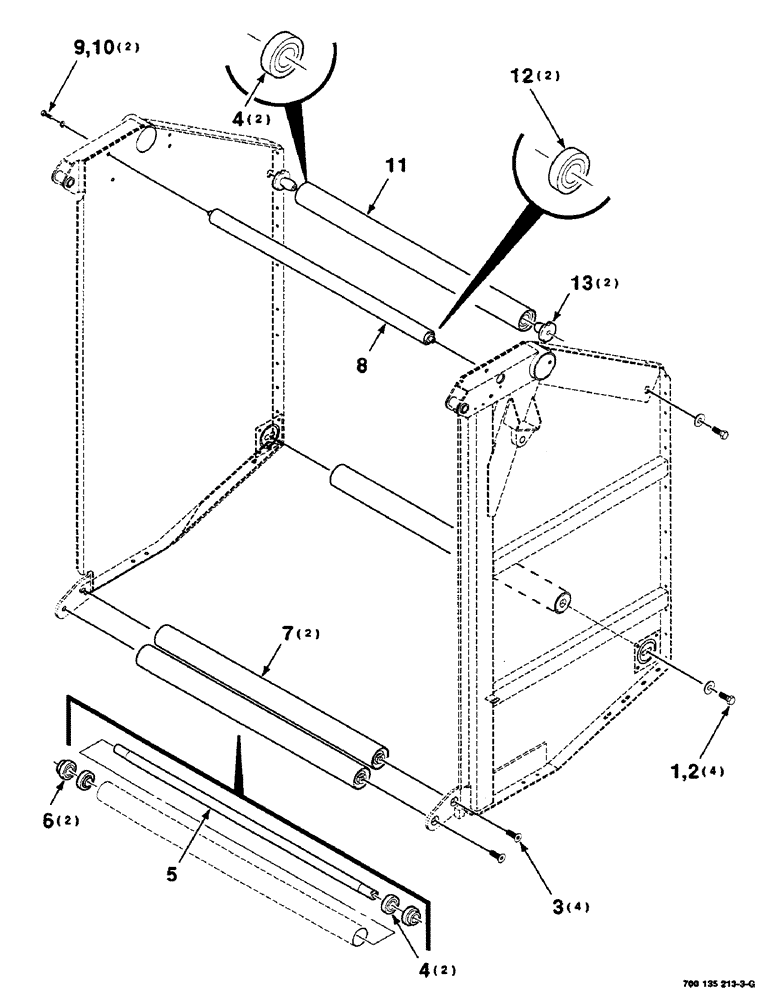

Запчасти Case IH RS451 (6-08) - TAILGATE ROLLER ASSEMBLY (14) - BALE CHAMBER

1

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

2

705566

WASHER

3/4 HARDENED PLAIN WASHER

4шт.

3

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

3/4-10 X 1-3/4 HSFCHCS SPL

4шт.

4

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

4шт.

5

700130870

SHAFT

1шт.

6

F82059

BEARING ASSY,38.1mm ID x 80mm OD x 22mm W

BEARING - cylindrical

2шт.

7

700130869

ROLL

ER ASSEMBLY (Includes items 4, 5 & 6)

2шт.

8

700135479

ROLLER

ASSEMBLY (Includes item 12)

1шт.

9

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

11

700116217

ROLL

ER ASSEMBLY (Includes item 4)

1шт.

12

586156R92

BEARING, ROLLER, CYL,0.7505" ID x 47 mm OD x 0.8437, 0.53125"

BEARING - cylindrical

2шт.

13

700100927

HUB

2шт.
