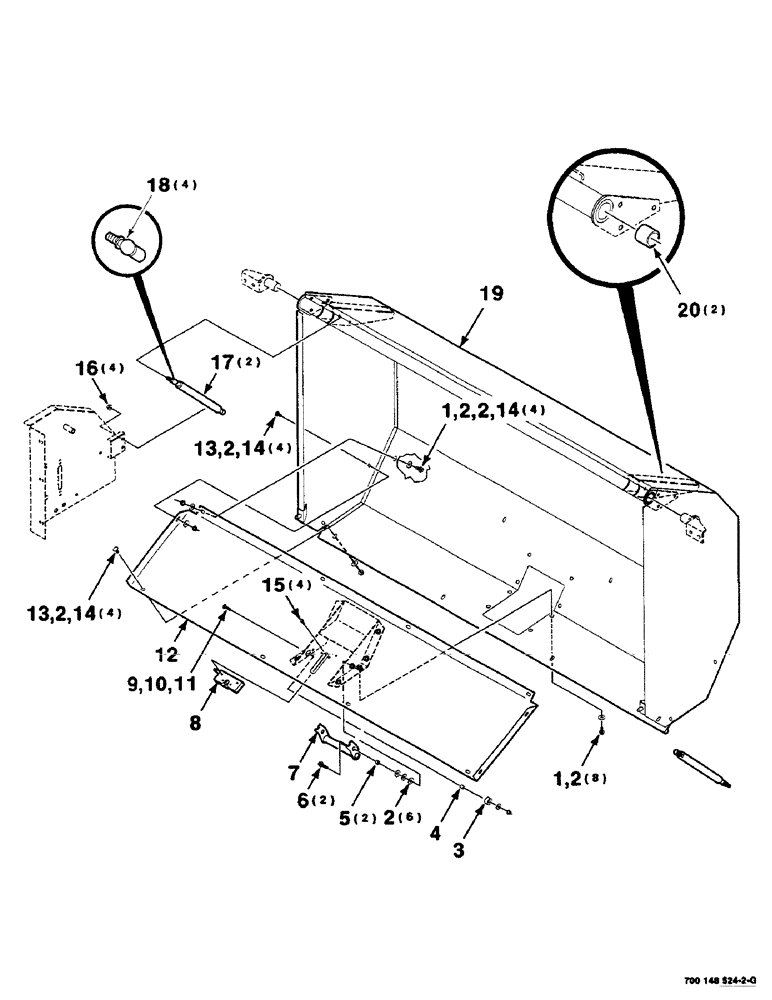

Запчасти Case IH RS451 (7-44) - MESH WRAP SHIELD ASSEMBLY (12) - MAIN FRAME

1

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

12шт.

2

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

30шт.

3

700717030

BUSHING

1шт.

4

6523799

BUSHING

- tensioner

1шт.

5

6270888

BUSHING

SPACER

2шт.

6

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.

7

700148582

LATCH

WA

1шт.

8

700720033

LATCH

1шт.

9

433-520

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

5/16-18 X 1-1/4 RHSNB

1шт.

10

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

1шт.

11

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

1шт.

12

700148586

SUPPORT

WA

1шт.

13

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

8шт.

14

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

12шт.

15

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

4шт.

16

700711876

LOCK NUT

M10 X 1.5 HFTLN CLASS 9

4шт.

17

700717029

CYLINDER ASSY.

SPRING - gas (Includes item 18)

2шт.

18

700718303

JOINT

14-28 BALL JOINT

4шт.

19

700148637

SHIELD

WA (Includes decals)

1шт.

20

700152035

BUSHING

2шт.
