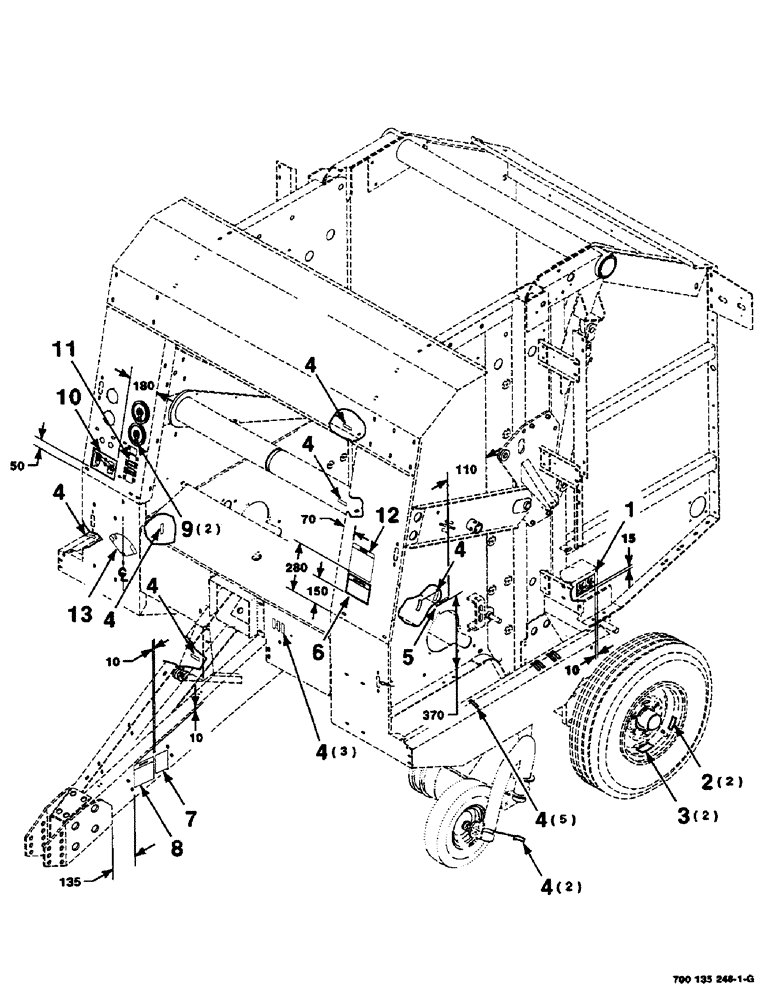

/ / / / / / / / (9-04) - DECAL AND LOCATION DIAGRAM, OPERATIONAL
Запчасти Case IH RS451 (9-04) - DECAL AND LOCATION DIAGRAM, OPERATIONAL Decals & Attachments
8
3
5
9
4
4
4
4
10
11
13
4
6
4
7
4
44
1
2
4
12
1
700714957
DECAL
- lockout
1шт.
2
779694
DECAL
- tire pressure
2шт.
3
700718883
DECAL
- notice
2шт.
4
7889306
DECAL
- lube
16шт.
5
7778202
DECAL
- oil chains
1шт.
6
700714229
DECAL
- warning
1шт.
7
700718803
DECAL
- patents
1шт.
8
878157
DECAL
- notice
1шт.
9
700716046
DECAL
- pulley
2шт.
10
700716618
DECAL
- gauge
1шт.
11
700716312
DECAL
- bale size
1шт.
12
700709165
DECAL
- notice, fire
1шт.
13
700716334
DECAL
- indicator
1шт.
