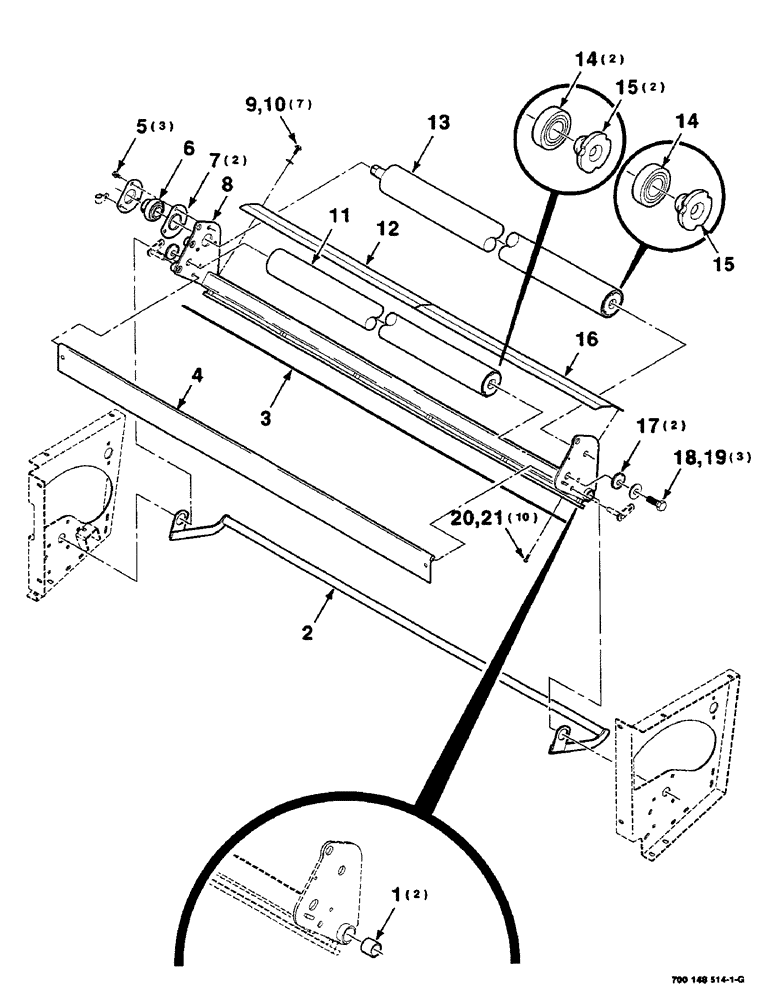

Запчасти Case IH RS451 (7-42) - MESH WRAP ROLLER ASSEMBLIES (12) - MAIN FRAME

1

7852254

BRONZE BUSHING

BUSHING - bronze

2шт.

2

700148649

ARM

WA

1шт.

3

700717048

KNIFE

1шт.

4

700148645

PANEL

1шт.

5

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

3шт.

6

50336

SHIELD,3.75 mm ID x 62 mm OD x 16, 48.41 mm

- spherical

1шт.

7

405696

FLANGE

- special

2шт.

8

700148614

FRAME

WA (Includes item 1)

1шт.

9

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHTCTS

7шт.

10

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

7шт.

11

700148638

ROLLER

ASSEMBLY - plated (Includes items 14 and 15)

1шт.

12

700152037

SHIELD

- right

1шт.

13

700148640

ROLLER

ASSEMBLY - rubber (Includes items 14 and 15)

1шт.

14

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- cylindrical

3шт.

15

700100927

HUB

3шт.

16

700152036

SHIELD

- left

1шт.

17

700148648

WASHER

- adjustment

2шт.

18

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

3шт.

19

700711166

WASHER

3/4 HARDENED WIDE PLAIN WASHER

3шт.

20

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 X 1 C

10шт.

21

1703354

NUT

1/4-20 HFTLN GR/G

10шт.
