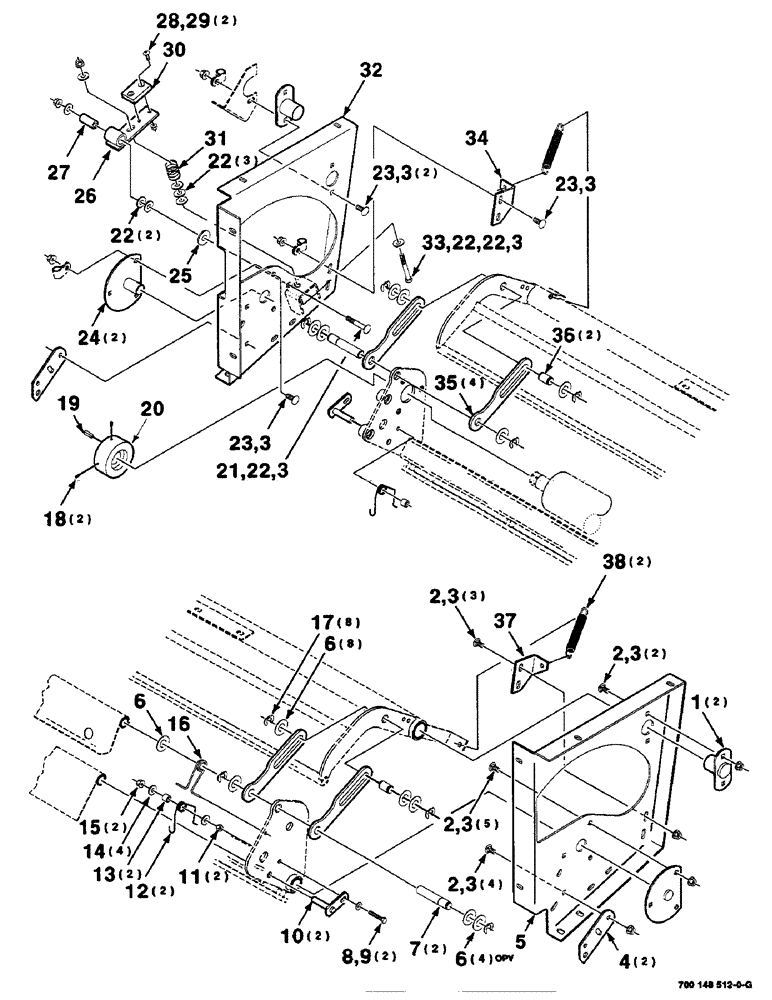

Запчасти Case IH RS451 (7-30) - MESH WRAP FRAME ASSEMBLY, LOWER (12) - MAIN FRAME

1

700148550

MOUNTING PARTS

MOUNTING WA

2шт.

2

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

14шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

20шт.

4

700148547

MOUNTING PARTS

MOUNTING

2шт.

5

700148539

PANEL

- L

1шт.

6

195-2089

WASHER,25/32" x 1 1/2" x .083"

3/4 X 18 GAUGE WRMB

13шт.

7

700148543

PIN

2шт.

8

7772858

BOLT,Hex, 5/16" x 1 3/4", Gr 5

5/16-18 X 1-3/4 FTC

2шт.

9

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

10

700148545

PIN

WA

2шт.

11

425-105

NUT,5/16"-18, G5

2шт.

12

700717039

SPRING

- torsion

2шт.

13

442178

BUSHING

2шт.

14

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

4шт.

15

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

16

700718011

SPRING

- torsion

1шт.

17

700718093

RING

- retaining, Ext

8шт.

18

83-516

SET SCREW,Hex Soc, 5/16"-18 x 1"

5/16-18 X 1 CPHSSS NP

2шт.

19

Q53

KEY,1/4" Sq x 1", Par

1шт.

20

700148554

DRUM

- brake

1шт.

21

433-644

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

3/8-16 X 2-3/4 RHSNB

1шт.

22

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

8шт.

23

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

24

700148537

MOUNTING PARTS

MOUNTING WA

2шт.

25

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

1шт.

26

700125828

SUPPORT

WA - brake

1шт.

27

700109003

BUSHING

1шт.

28

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

GR60M Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

29

1703354

NUT

1/4-20 HFTLN GR/G

2шт.

30

700710930

PAD

BRAKE - pad

1шт.

31

58107

SPRING

- compression

1шт.

32

700148540

PANEL

WA - R

1шт.

33

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

C Hex, 3/8"-16 x 2 3/4", G5

1шт.

34

700148557

MOUNTING PARTS

MOUNTING - R

1шт.

35

700148549

STRAP

4шт.

36

700148548

PIN

2шт.

37

700148556

MOUNTING PARTS

MOUNTING - L

1шт.

38

7758220

SPRING

- tension

2шт.
