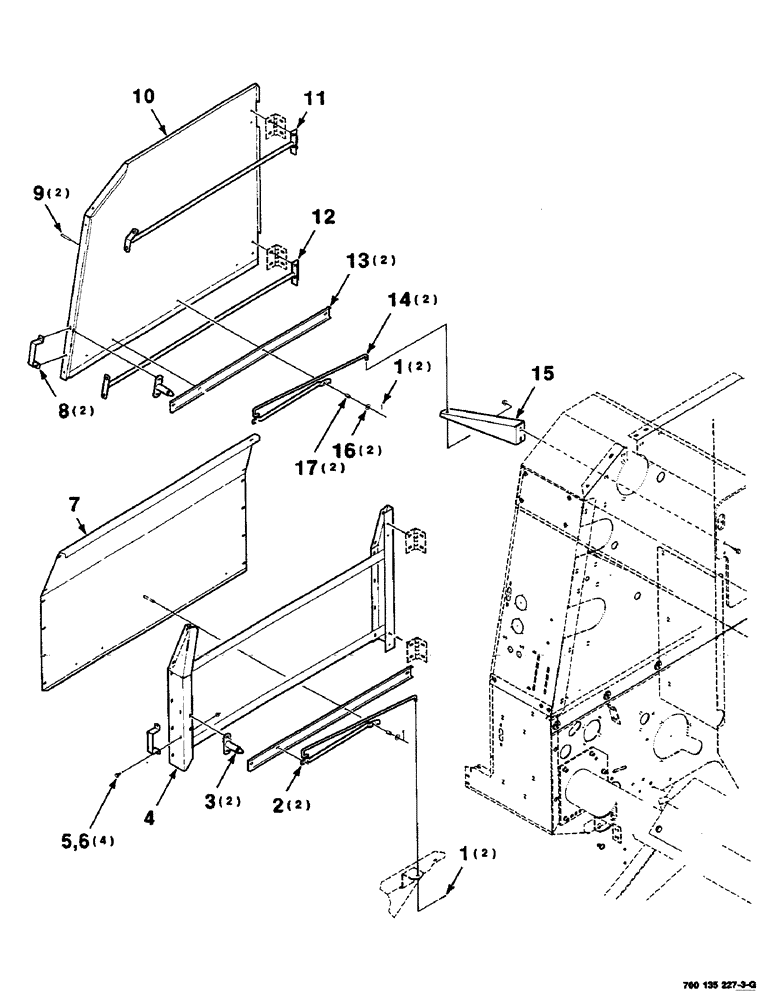

Запчасти Case IH RS451 (7-24) - SHIELD, LATCH AND SUPPORT ASSEMBLIES, RIGHT (12) - MAIN FRAME

1

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

2

700117061

LATCH

2шт.

3

700135648

PIN

WA

2шт.

4

700150817

SHIELD

FRAME WA - right, shield (Includes reflectors)

1шт.

5

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

7

700150816

SHIELD

- lower, right (Includes decals)

1шт.

8

700135650

HANDLE

2шт.

9

439-5532

HEADED PIN,5/16" x 2"

5/16 X 2 CLEVIS PIN

2шт.

10

700135638

SHIELD

- upper, right

1шт.

11

700135641

SUPPORT

WA - upper, right

1шт.

12

700135646

SUPPORT

WA - lower, right

1шт.

13

700132503

CHANNEL

2шт.

14

700117067

SUPPORT

2шт.

15

700135685

SUPPORT

- right

1шт.

16

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

2шт.

17

754606

SPRING

- compression

2шт.
