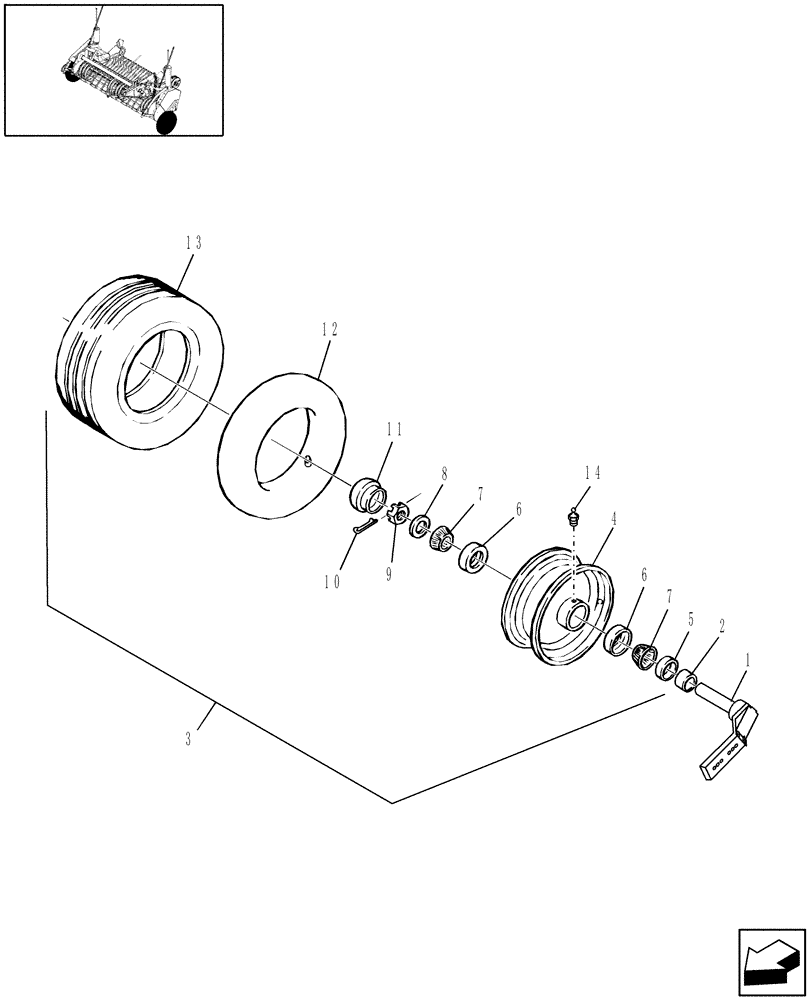

Запчасти Case IH RBX563 (11.15) - WHEELS & TIRES, STANDARD PICKUP, 4 PLY, 15 X 6 - 6 (11) - WHEELS

1

87056325

SUPPORT ASSY.

Bracket

1шт.

2

86611228

SPACER

1шт.

3

0C

ORDER COMPONENTS

Tire & Wheel

1шт.

4

86616348

WHEEL

1шт.

5

136376

SEAL,31.75mm ID x 50.42mm OD x 6.75mm Thk

Oil

1шт.

6

572564R1

BEARING CUP

Tapered Roller

2шт.

7

D29266

ROLLER BEARING,1" ID x 0.58"

Tapered Roller

2шт.

8

26130

WASHER,26mm ID x 35mm OD x 1.7mm Thk

Special, .060" Thk

1шт.

9

603373

JAM NUT,Slotted, 1" - 14, Gr 2

Jam, G2, 1"-14

1шт.

10

432-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

11

200734

HUB CAP

1шт.

12

279538

TUBE

Inner, 15 x 6 - 6

1шт.

13

86611311

TYRE/TIRE

15 x 6 -6 Rib, 4 Ply

1шт.

14

219-10

LUBE NIPPLE,1/4" - 28 NPTF

1шт.
