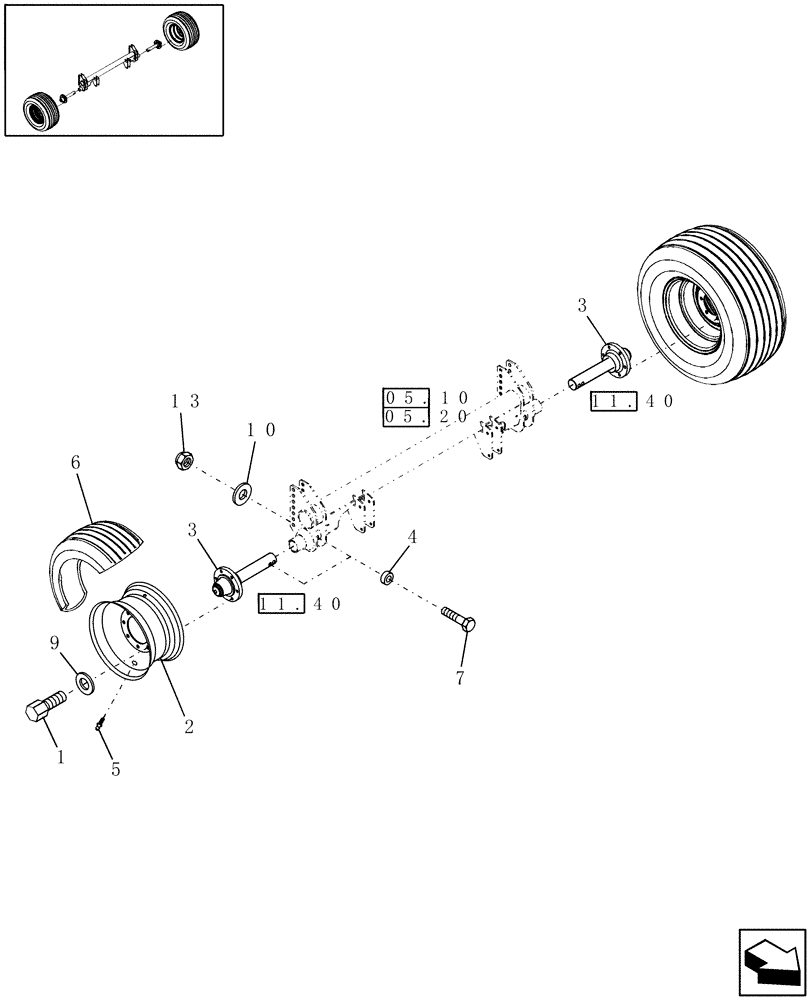

Запчасти Case IH RBX563 (11.05) - WHEELS, 8 PLY 16" (11) - WHEELS

1

198056

WHEEL BOLT,1/2" - 20 x 1.031"

G5

12шт.

Model RBX553 & RBX563 Standard Pickup

1шт.

1

428-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 8

12шт.

Model RBX563 W/2M Wide Pickup

1шт.

2

86616344

WHEEL

2шт.

Model RBX553 & RBX563 Standard Pickup

1шт.

2

87025707

WHEEL

2шт.

Model RBX563 W/2M Wide Pickup

1шт.

3

0C

ORDER COMPONENTS

Hub & Spindle

2шт.

4

86641937

SPACER,16.6mm ID x 31.75mm OD x 12.7mm Thk

2шт.

5

512083

VALVE STEM

2шт.

6

621531

TYRE/TIRE

14L-16.1, 8 Ply

2шт.

7

374889

BOLT,Hex, M16 x 100mm, Cl 8.8

2шт.

9

87025710

WASHER

Plated, HT

12шт.

Model RBX563 W/2M Wide Pickup

1шт.

10

122432

WASHER,17mm ID x 41mm OD x 6mm Thk

Hardened, 5/8"

2шт.

13

832-46416

NUT,M16 x 2, Cl 8

2шт.
