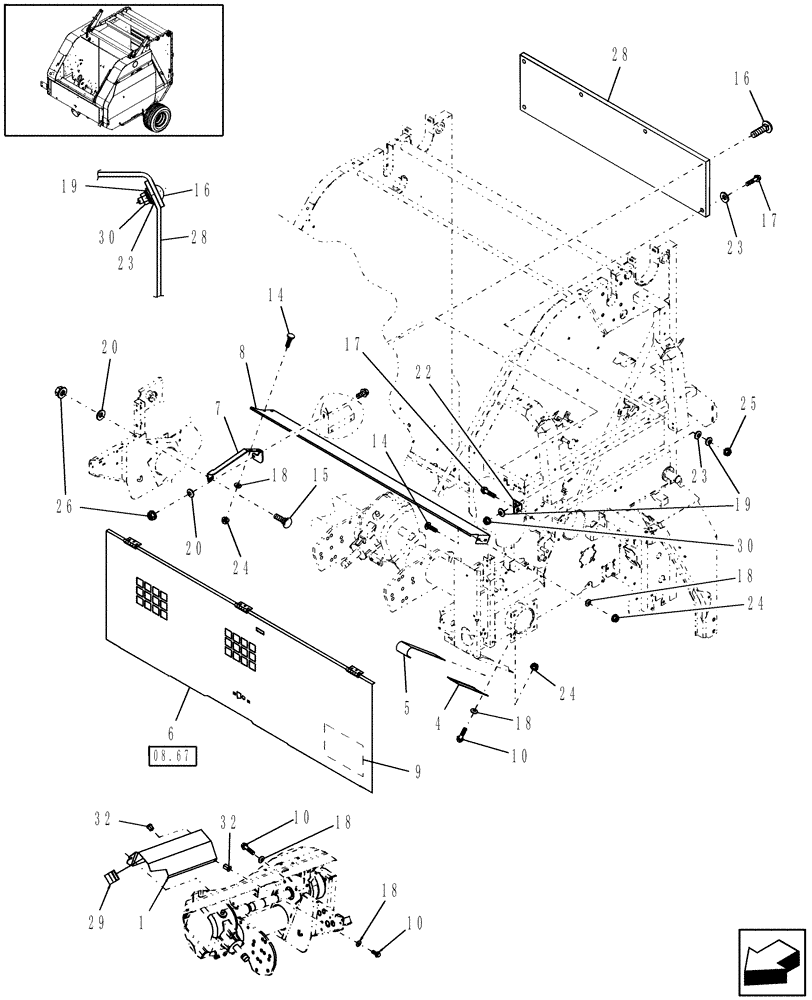

Запчасти Case IH RBX563 (08.61[1]) - SHIELDS, NET, PRIOR TO P.I.N. Y6N016413 (08) - SHEET METAL/DECALS

1

87037948

SHIELD

Includes: Ref. 31

1шт.

North America

1шт.

1

87034067

SHIELD

1шт.

Europe & R.O.W.

1шт.

4

86631554

CHANNEL

1шт.

5

86631522

SHEET METAL

Stuffer Tool

1шт.

6

87014361

DOOR ASSY.

Net

1шт.

7

86636528

BRACKET

1шт.

8

86632714

SHIELD

1шт.

9

86642356

DECAL

Net Routing

1шт.

10

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

6шт.

14

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

4шт.

15

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

1шт.

16

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

5шт.

17

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

18

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

10шт.

19

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

22

86626584

BRACKET

2шт.

23

495-21038

WASHER,5/16"

9шт.

24

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

8шт.

25

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

26

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

2шт.

28

86635162

SHIELD,Rubber Coated

1шт.

29

87019330

RUBBER SEAL

10'

1шт.

30

832-46408

NUT,M8 x 1.25, Cl 8

7шт.

31

87037375

WARNING DECAL

Net Knife, English

1шт.

Decals are Not Illustrated in this Figure. Refer to Decal Figure for Proper Decal Location.

1шт.

31

87037730

DECAL

WARNING, Net Knife, French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

Decals are Not Illustrated in this Figure. Refer to Decal Figure for Proper Decal Location.

1шт.

32

86610198

INSERT,M6 x 1

Threaded, M6

2шт.
