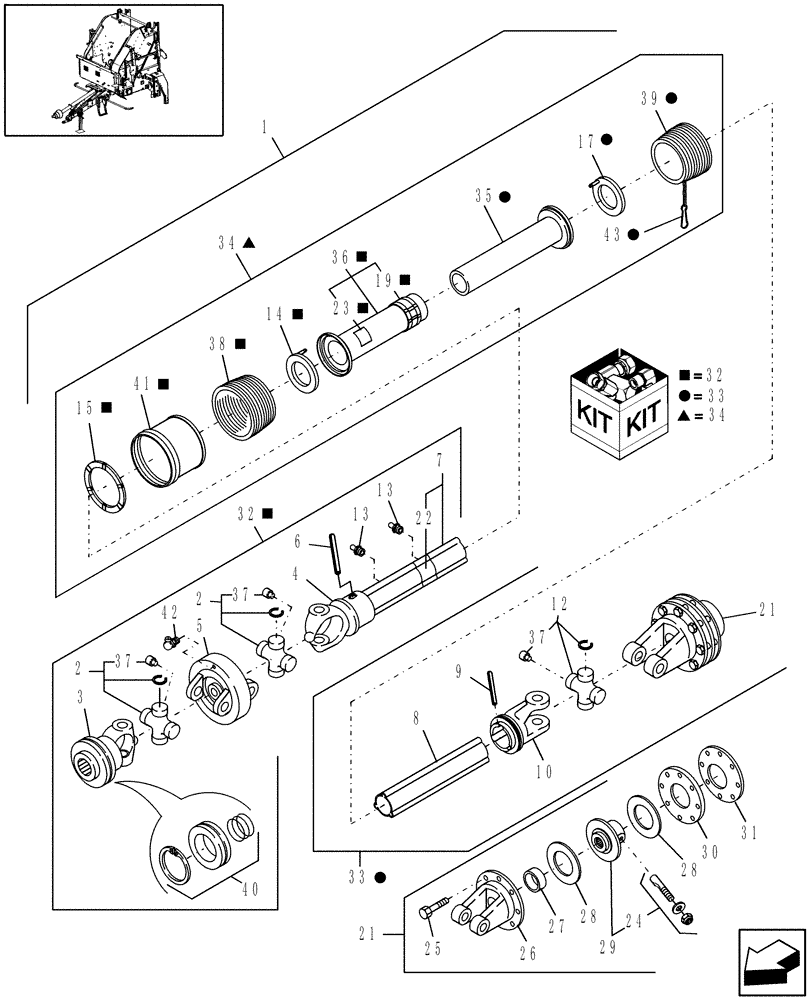

Запчасти Case IH RBX563 (01.21) - POWER TAKE OFF, 1000 RPM, SLIP CLUTCH, NORTH AMERICA, P.I.N. Y6N016414 & AFTER (01) - POWER TAKE OFF
№
Артикул
Название
Примечание
Количество
1
87516694
PTO,1 3/8 x 21 Spline Incl
1000 RPM, Slip Clutch
1шт.
2
87517787
U-JOINT SPIDER
1шт.
3
87517788
YOKE
1шт.
4
87517786
YOKE
1шт.
5
87517785
BODY
1шт.
6
87517784
ROLL PIN,8.6mm OD x 80mm L
1шт.
7
87517780
TUBE
Outer
1шт.
8
87517781
TUBE,1170 mm L
1шт.
9
86625846
PIN
Spring
1шт.
10
87517779
YOKE
1шт.
11
87517776
SLIP CLUTCH
1шт.
12
87018246
SPIDER
1шт.
13
87012758
LUBE NIPPLE
LUBRICATOR
2шт.
14
87517774
SHIELD
1шт.
15
87517775
SHIELD
Includes: Clip
1шт.
16
PL
PROCURE LOCALLY
Screw
12шт.
Not Illustrated
1шт.
17
86625852
RING NUT
1шт.
18
PL
PROCURE LOCALLY
Washer
6шт.
Not Illustrated
1шт.
19
87518208
COLLAR ASSY.
1шт.
20
PL
PROCURE LOCALLY
Screw
2шт.
Not Illustrated
1шт.
21
87517776
SLIP CLUTCH
1шт.
22
849472
DANGER DECAL
English
1шт.
22
849483
DANGER DECAL
French
1шт.
Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.
1шт.
23
849471
DANGER DECAL
English
1шт.
23
849482
DANGER DECAL
French
1шт.
Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.
1шт.
24
86625865
KIT
Tapered
1шт.
25
87012735
KIT
Bolt
8шт.
26
86625860
CLUTCH PLATE
1шт.
27
86984909
BUSHING
1шт.
28
84011442
DISC
2шт.
29
86625864
HUB
1шт.
30
87517773
THRUST PLATE
1шт.
31
87517766
BELLEVILLE SPRING
1шт.
32
87517789
FRONT PTO ASSY
1шт.
33
87517790
REAR PTO ASSY
1шт.
34
87517791
REPAIR KIT
1шт.
35
NSS
NOT SOLD SEPARAT
Shield
1шт.
36
NSS
NOT SOLD SEPARAT
Shield, Outer
1шт.
38
NSS
NOT SOLD SEPARAT
Cover
1шт.
39
NSS
NOT SOLD SEPARAT
Cover
1шт.
40
87018800
KIT
Kit
1шт.
41
NSS
NOT SOLD SEPARAT
Cover Band
1шт.
42
933205R91
LUBE NIPPLE,90 Degree, M8 x 1.25
1шт.
43
86979198
CHAIN,229mm L
Safety
1шт.
Выбрано товаров: 50
