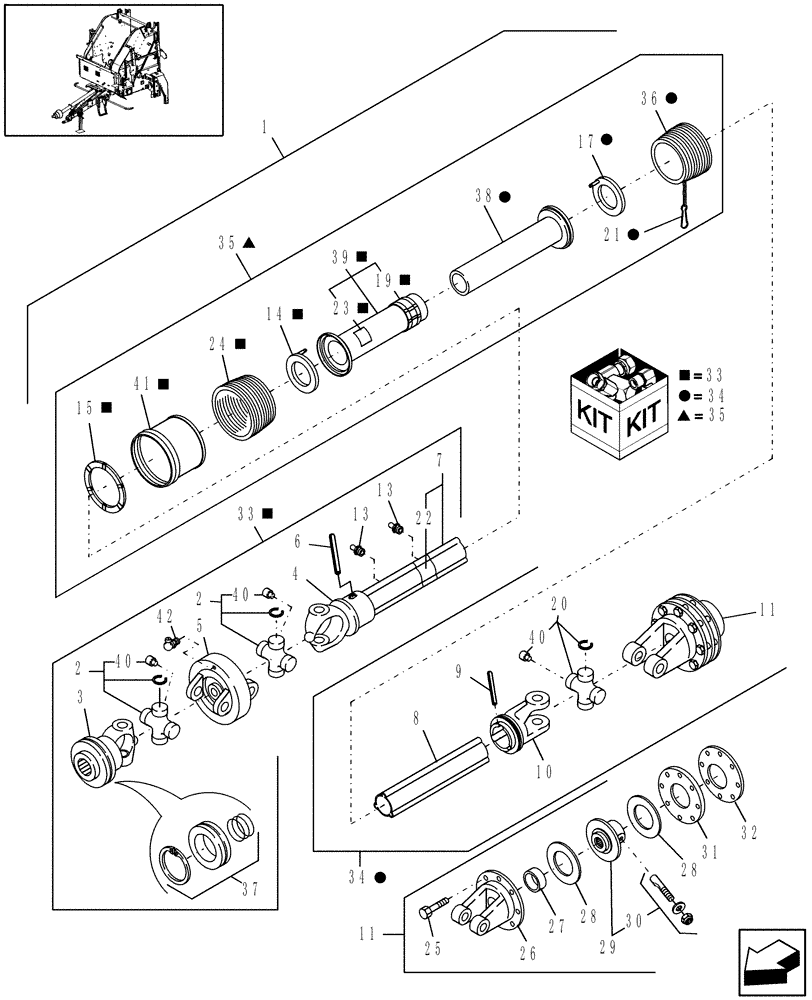

Запчасти Case IH RBX563 (01.11) - POWER TAKE OFF, 540 RPM, SLIP CLUTCH, NORTH AMERICA, P.I.N. Y6N016414 & AFTER (01) - POWER TAKE OFF
№
Артикул
Название
Примечание
Количество
1
87516693
PTO
540RPM, Slip Clutch
1шт.
2
87517823
BEARING ASSY
1шт.
3
87517822
YOKE
1-3/8", Standard
1шт.
3
87675559
YOKE
1-3/4", Optional
1шт.
4
87517824
YOKE
Front
1шт.
5
87517825
YOKE
1шт.
6
87517826
ROLL PIN,10.5mm OD x 95mm L
1шт.
7
87517827
OUTER SHIELD
1шт.
8
87517828
INNER SHIELD
1шт.
9
84036368
ROLL PIN
1шт.
10
87517829
YOKE
1шт.
11
87517830
CLUTCH
1шт.
12
PL
PROCURE LOCALLY
Screw, Used with Ref. 19
2шт.
13
87012758
LUBE NIPPLE
LUBRICATOR
2шт.
14
87517831
BEARING COVER,89.4 mm ID x 132 mm OD x 12 mm
1шт.
15
87517832
BEARING COVER,128.4 mm ID x 187 mm OD x 11 mm
Includes: Clip
1шт.
16
PL
PROCURE LOCALLY
Screw, Attached Ref. 41 to Ref. 38
12шт.
17
86979196
BEARING,86mm ID x 132mm OD x 12mm H
1шт.
18
NSS
NOT SOLD SEPARAT
Washer, Used with Ref. 16
6шт.
19
87517838
COLLAR ASSY.
1шт.
20
87018244
CROSS
1шт.
21
86979198
CHAIN,229mm L
Safety
1шт.
22
849472
DANGER DECAL
English
1шт.
22
849483
DANGER DECAL
French
1шт.
Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.
1шт.
23
849471
DANGER DECAL
English
1шт.
23
849482
DANGER DECAL
French
1шт.
Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.
1шт.
24
NSS
NOT SOLD SEPARAT
Cover
1шт.
25
87012735
KIT
Bolt
8шт.
26
86979201
YOKE
1шт.
27
86984909
BUSHING
1шт.
28
84011442
DISC
2шт.
29
86625864
HUB
1шт.
30
86625865
KIT
Tapered
1шт.
31
87517773
THRUST PLATE
1шт.
32
87517766
BELLEVILLE SPRING
1шт.
33
87517840
FRONT PTO ASSY
1шт.
34
87517841
REAR PTO ASSY
1шт.
35
87517842
REPAIR KIT
1шт.
36
NSS
NOT SOLD SEPARAT
1шт.
37
87018800
KIT
1шт.
38
NSS
NOT SOLD SEPARAT
1шт.
39
NSS
NOT SOLD SEPARAT
1шт.
41
NSS
NOT SOLD SEPARAT
1шт.
42
933205R91
LUBE NIPPLE,90 Degree, M8 x 1.25
1шт.
Выбрано товаров: 47
