(SECTION 13[RBX563]) - PICTORIAL INDEX, PICKUP

Запчасти Case IH RBX563 (SECTION 13[RBX563]) - PICTORIAL INDEX, PICKUP (00) - GENERAL

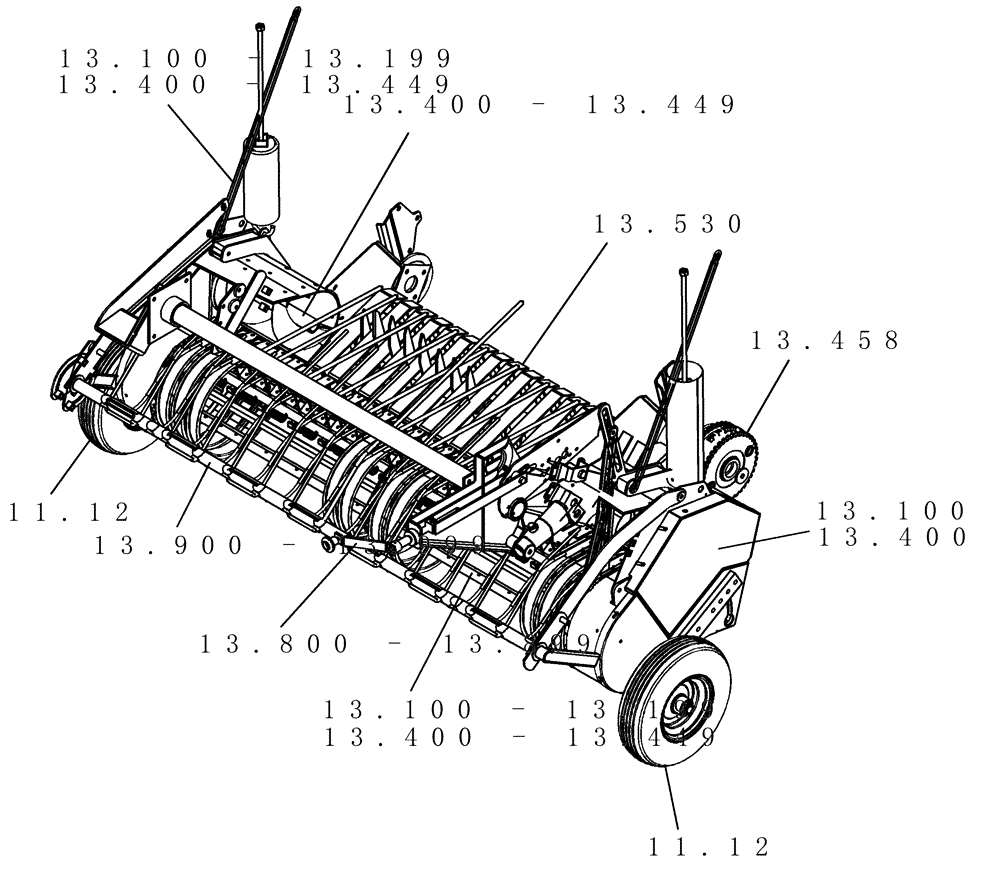

Схема запчастей Case IH RBX563 - (SECTION 13[RBX563]) - PICTORIAL INDEX, PICKUP (00) - GENERAL
11.12
13.800 - 13.899
11.12
13.400 - 13.449
13.400 - 13.449
13.100 - 13.199
13.530
13.900 - 13.999
13.400 - 13.449
13.458
13.400 - 13.449
13.100 - 13.199
13.100 - 13.199
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

13.105

STANDARD PICKUP MOUNTING

1шт.

13.140

STANDARD PICKUP, FRAME, WINDGUARD & SLIP CLUTCH

1шт.

13.145

STANDARD PICKUP, SHIELDS, REEL & DRIVE

1шт.

13.407

1.8M & 2M WIDE PICKUP, STUFFER FEEDER MOUNTING, NORTH AMERICA

1шт.

13.409

2M WIDE PICK UP, STUFFER FEEDER, NORTH AMERICA

1шт.

13.411

2M WIDE PICKUP & STUFFER FEEDER, NORTH AMERICA

1шт.

13.421

2M WIDE PICKUP W/ STUFFER FEEDER

1шт.

13.431

2M WIDE PICKUP, REEL, STUFFER FEEDER

1шт.

13.458

2M WIDE PICKUP, JAW CLUTCH

1шт.

13.530

STUFFER FEEDER, 2 SEGMENT

1шт.

13.800

STANDARD PICKUP, MECHANICAL PICKUP LIFT

1шт.

13.820

2M WIDE PICKUP, PICKUP LIFT, STUFFER FEEDER, NORTH AMERICA

1шт.

13.980

2M WIDE PICKUP, WINDGUARD

1шт.

13.990

WINDGUARD, UPPER

1шт.

13.995

WINDGUARD, CURVED

1шт.
