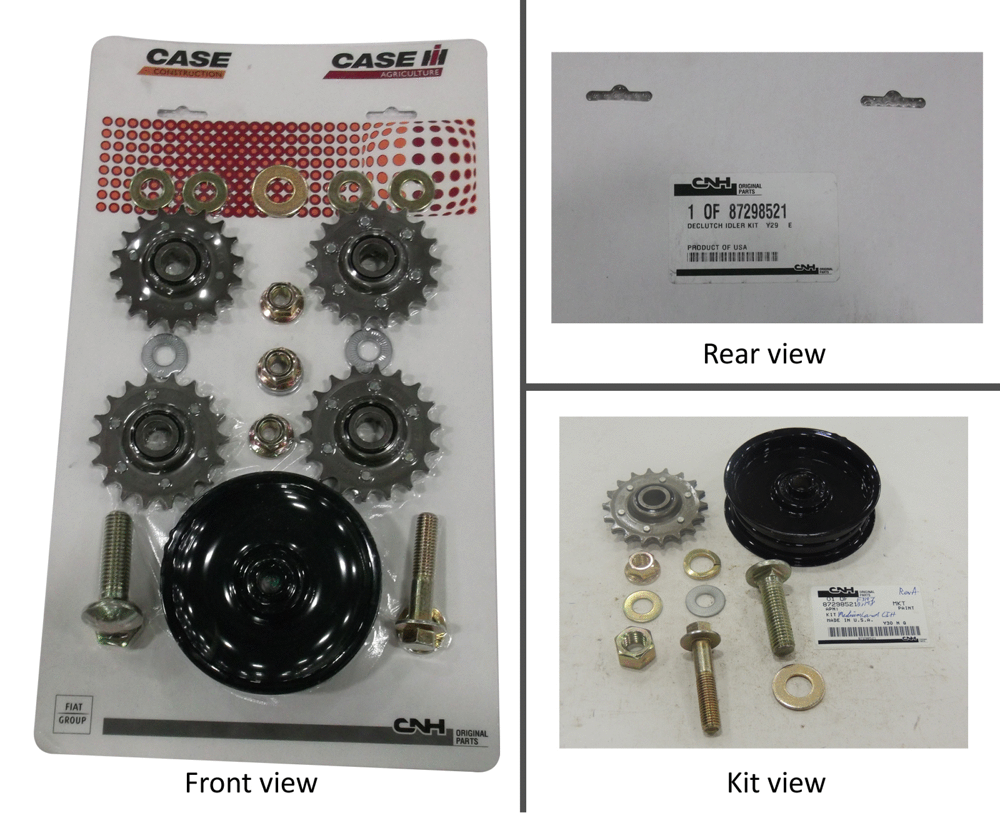

Запчасти Case IH RBX563 (19.16) - KIT IDLER DECLUTCH (18) - ACCESSORIES

1

87298521

KIT

Incl 2 - 11

1шт.

2

103243

DRIVEN SPROCKET

4шт.

3

86729275

LOCK WASHER,5/8 0.634 CST ZND

1шт.

4

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

5

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

6

280667

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

1шт.

7

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

8

86512497

FLANGE NUT,M12 x 1.75, Cl 10

3шт.

9

86636724

IDLER,101.6mm Idler Dia x 115.49mm OD x 37.31mm W

1шт.

10

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

1шт.

11

9804270

BOLT,Hex, M12 x 60mm, Cl 8.8

1шт.
