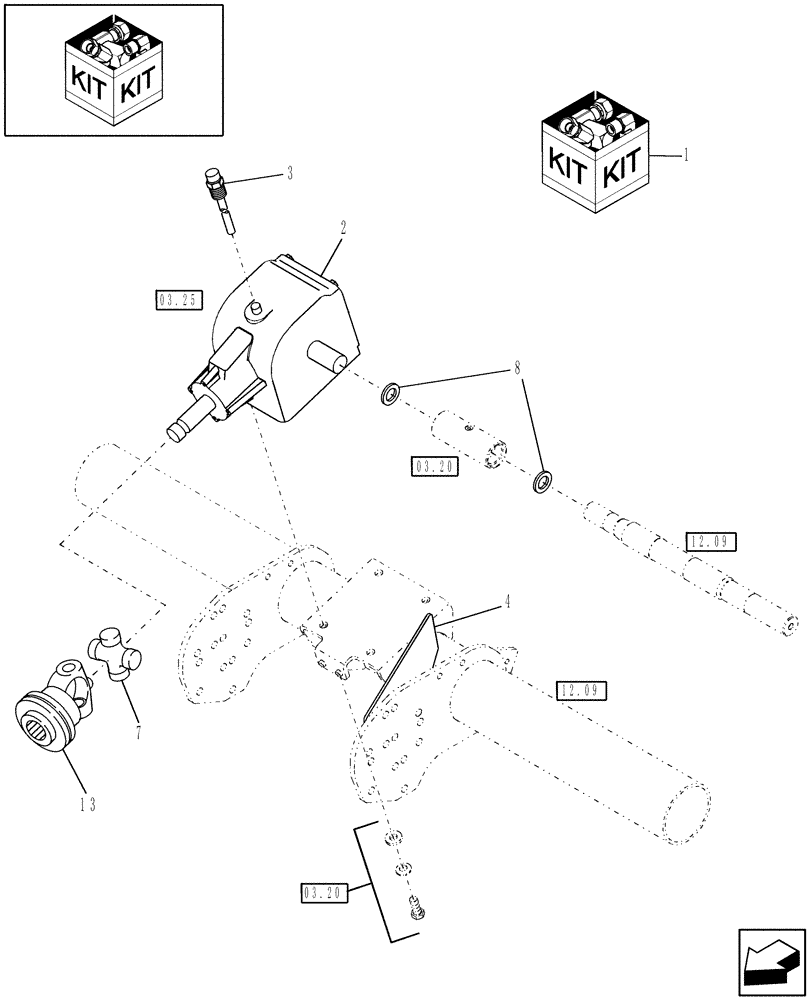

Запчасти Case IH RBX563 (18.90) - GEARBOX CONVERSION KIT, 540 TO 1000 RPM (18) - ACCESSORIES

1

86643867

DIA KIT, HARVESTER

Gearbox Conversion, 540 RPM to 1000 RPM, Includes: Installation Instructions

1шт.

Use Existing Hardware & Coupler

1шт.

Prior to P.I.N. Y6N016413

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

1

87702277

CONVERSION KIT

Gearbox Conversion, 540 RPM to 1000 RPM, Includes: Installation Instructions

1шт.

Use Existing Hardware & Coupler

1шт.

Prior to P.I.N. Y6N016413

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87025453

GEARBOX

100 RPM

1шт.

Manufacturer's I.D. #322.001.00 Stamped in Top of Gearbox Housing

1шт.

P.I.N. Y6N016414 & After

1шт.

2

87344585

GEARBOX

1000 RPM

1шт.

Manufacturer's I.D. #322.001.00 Stamped in Top of Gearbox Housing

1шт.

P.I.N. Y6N016414 & After

1шт.

3

86626271

DIPSTICK

1шт.

4

86637820

PLATE

Fixture

1шт.

7

86979188

SPIDER,30.2mm Cap Dia, 92mm L, Grease-able

1шт.

Prior to P.I.N. Y6N016413

1шт.

7

87517823

BEARING ASSY

1шт.

P.I.N. Y6N016414 & After

1шт.

8

86637370

SEAL,40mm ID x 52mm OD x 7mm Thk

1шт.

12

87049205

WARNING DECAL

1000 RPM, English

1шт.

Not Illustrated

1шт.

12

87053157

DECAL

WARNING, 1000 RPM, French

1шт.

Not Included in Kit. Shown for Reference Only.

1шт.

13

86705060

YOKE

1000 RPM, 1-3/8" - 21 Splines

1шт.

Prior to P.I.N. Y6N016413

1шт.

13

87698723

YOKE

1000 RPM, 1-3/8" - 21 Splines

1шт.

P.I.N. Y6N016414 & After

1шт.
