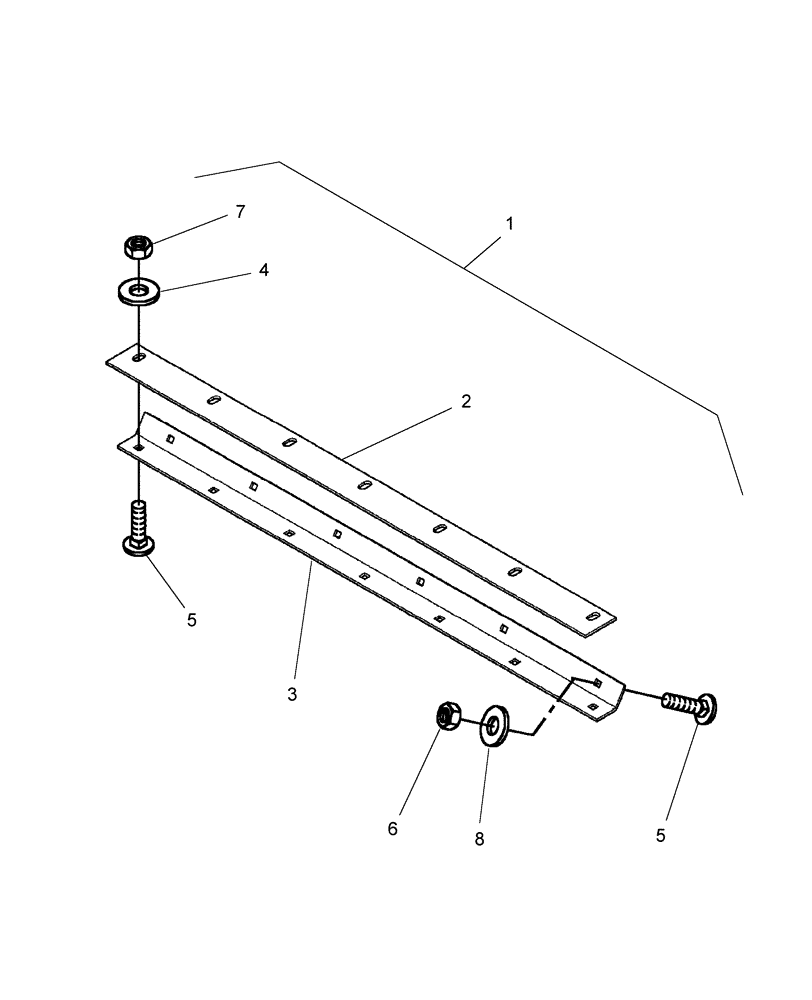

Запчасти Case IH RBX563 (18.58) - DUCKBILL TRASH BAFFLE KIT (18) - ACCESSORIES

1

87056442

DIA KIT, HARVESTER

Duckbill Trash Baffle, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87047910

STRIP

Rubber

1шт.

3

87047909

ANGLE

1шт.

4

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

9шт.

5

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

17шт.

6

825-1406

NUT,M6, Cl 8

8шт.

7

832-46406

NUT,M6 x 1, Cl 8

9шт.

8

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.
