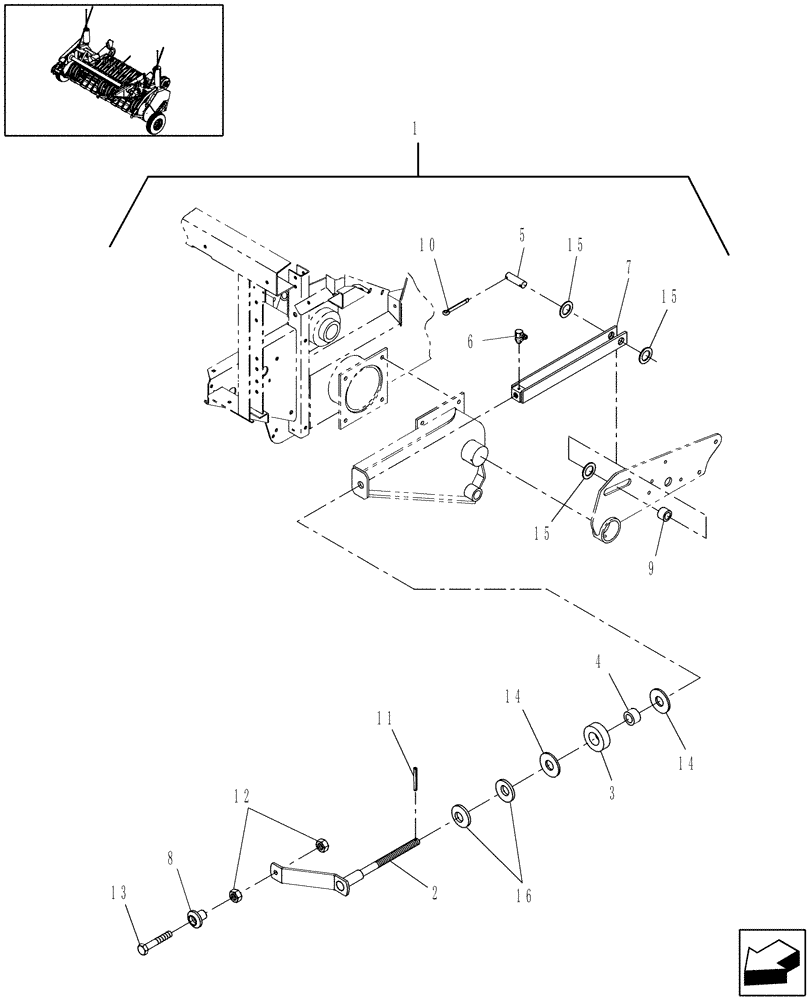

Запчасти Case IH RBX563 (18.54) - MECHANICAL PICKUP LIFT (18) - ACCESSORIES

1

87716797

KIT

Mechanical Pickup Lift, Includes: Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87716952

CRANK

1шт.

3

90999

SPACER,25.65mm ID x 50.8mm OD x 15.88mm L

1шт.

4

86636652

SPACER

1шт.

5

86634564

PIN

1шт.

6

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1шт.

7

87716961

LINK

1шт.

8

33781

KNOB

1шт.

9

86636631

HUB

1шт.

10

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

2шт.

11

280315

GROOVED PIN,4.76mm OD x 25.4mm L

1шт.

12

9628503

NUT,3/8"-16, G5

2шт.

13

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

1шт.

14

578092

WASHER,19.4mm ID x 47.6mm OD x 3.43mm Thk

2шт.

15

249100

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

5шт.

16

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

2шт.
