Запчасти Case IH RBX563 (18.17[1]) - TWINE CONVERSION KIT (18) - ACCESSORIES

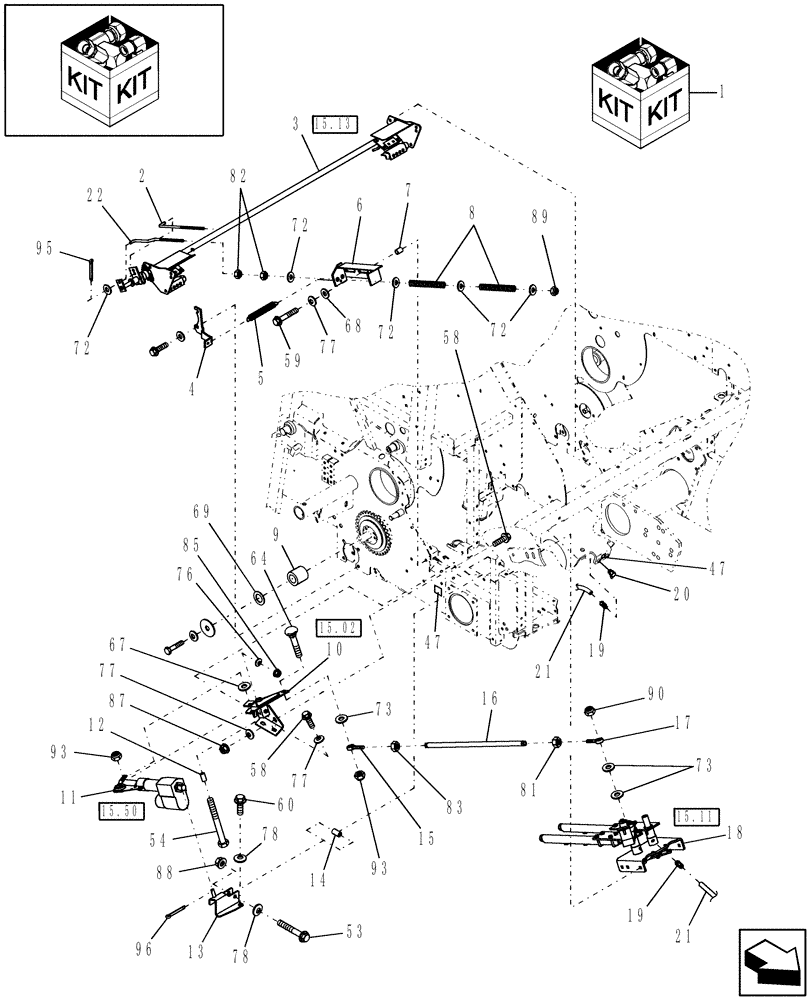

Схема запчастей Case IH RBX563 - (18.17[1]) - TWINE CONVERSION KIT (18) - ACCESSORIES
78
18
77
77
8
21
95
69
14
6
89
2
54
19
47
73
11
85
4
93
73
15.02
15.11
15.50
72
15
68
58
64
17
3
82
16
20
60
12
19
53
21
76
83
1
10
9
78
13
81
5
96
15.13
87
88
90
67
72
72
93
77
72
7
58
47
22
59

Артикул

Название

Примечание

Количество

1

87692774

CONVERSION KIT

Twine Conversion, Includes: Ref. 2 - 96 & Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

86729078

ROD

1шт.

3

0C

ORDER COMPONENTS

Twine Knife

1шт.

4

86620402

BRACKET

1шт.

5

86559592

SPRING,Extension, 0.99" OD x 6-1/4" L

Extension

1шт.

6

86636790

PLATE

1шт.

7

9848747

SPACER

2шт.

8

87048450

SPRING

3" Lg.

2шт.

9

86979126

SPACER,30.2mm ID x 41.53mm OD x 74mm L

1шт.

10

0C

ORDER COMPONENTS

Pivot

1шт.

11

0C

ORDER COMPONENTS

Actuator

1шт.

12

86553579

GUIDE

Follower, Cam

1шт.

13

86615423

SUPPORT

1шт.

14

86631123

SPACER,12.95mm ID x 19.05mm OD x 27mm L

1шт.

15

614445

SPHERICAL BEARING,12.764 mm ID x 33.34 mm OD x 15.88 mm

End, Spherical Bearing, RH-Thread

1шт.

16

87692777

TUBE,21.3 mm DIA x 640 mm L

1шт.

17

618883

BALL JOINT HEAD,1/2" - 20

End, Spherical Bearing, LH-Thread

1шт.

18

0C

ORDER COMPONENTS

Pivot

1шт.

19

11787

FITTING,3/8"-24 Fem x 1/8" NPT

Includes: Ref. 24 & 25

4шт.

20

80719

LUBE NIPPLE,1/8" NPT

2шт.

21

87014413

TUBE,4.80 mm OD x 1850 mm L

Lube Line, 3/16" x 6'

1шт.

22

86636646

ROD

1шт.

24

13362

SLEEVE,Compression, 3/16" Tube

1шт.

Not Illustrated

1шт.

25

13367

NUT,3/8" - 24

1шт.

Not Illustrated

1шт.

47

165109

DECAL

Lube Fitting

3шт.

53

9706693

BOLT,M12 x 60mm, Cl 8.8

1шт.

54

86508581

BOLT,Hex, M12 x 90mm, Cl 8.8

1шт.

58

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

3шт.

59

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

2шт.

60

86977727

FLANGE BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

64

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

1шт.

67

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

68

58225

WASHER,10.32mm ID x 31.8mm OD x 3.45mm Thk

Special, 1-1/4" OD

2шт.

69

673

WASHER,29mm ID x 41mm OD x 1.52mm Thk

1шт.

72

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

8шт.

73

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

3шт.

76

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

77

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

78

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

14шт.

81

88058

NUT

G2, LH Thread, 1/2"-20

1шт.

82

9628503

NUT,3/8"-16, G5

4шт.

83

280963

NUT,Nut, 1/2-20 GR 5 ZND

1шт.

85

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

7шт.

87

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

88

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

89

88902

NUT,3/8"-16

2шт.

90

88871

NUT,1/2"-13, GC

1шт.

93

100038

NUT,M12 x 1.75, Cl 8

6шт.

95

80756

COTTER PIN,1/8" x 3/4"

2шт.

96

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

1шт.

Выбрано товаров: 53
