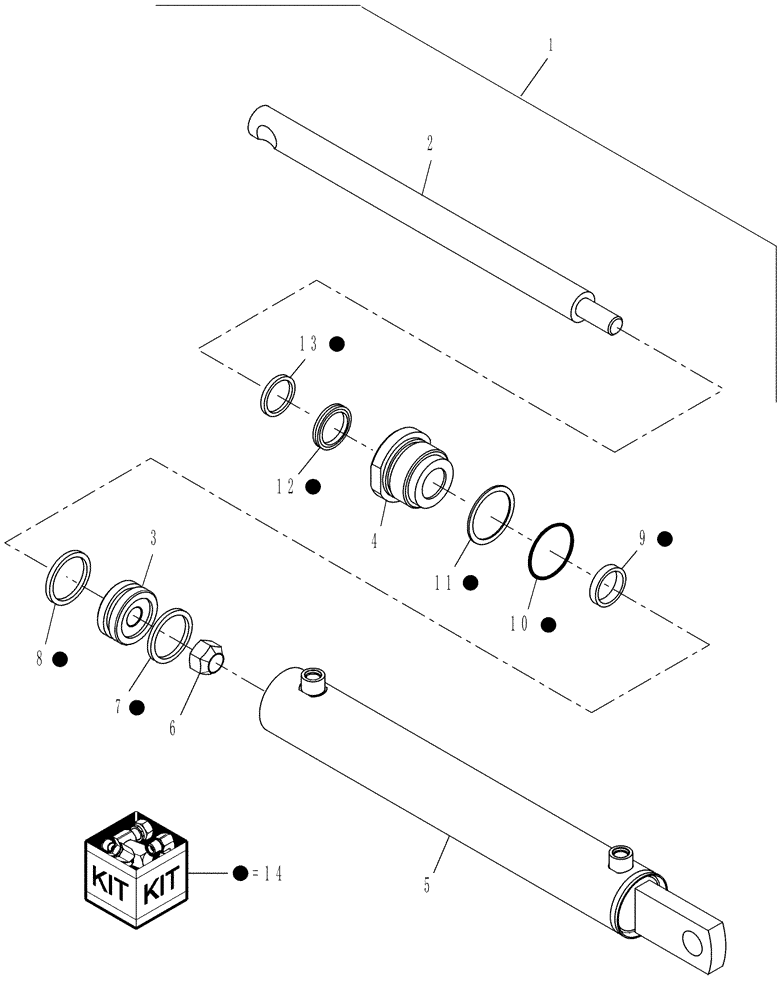

Запчасти Case IH RBX563 (18.09[3]) - HYDRAULIC CYLINDER, BALE RAMP (18) - ACCESSORIES

1

87731915

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 107.95mm Stroke

Bale Ramp

1шт.

2

NSS

NOT SOLD SEPARAT

Rod

1шт.

87722551

1шт.

3

87026074

PISTON

1шт.

4

87025449

HEAD

Cylinder Barrel

1шт.

5

NSS

NOT SOLD SEPARAT

1шт.

6

280724

LOCK NUT,3/4" - 16

1шт.

7

NSS

NOT SOLD SEPARAT

Wear Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Seal

1шт.

9

NSS

NOT SOLD SEPARAT

Wear Ring

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Washer

1шт.

12

NSS

NOT SOLD SEPARAT

Rod Seal

1шт.

13

NSS

NOT SOLD SEPARAT

Wiper Seal

1шт.

14

87722552

SEAL KIT

Includes: Ref. 7 - 13

1шт.
