(15.06[2]) - ELECTRIC TWINE WRAP, SHIELDS, P.I.N. Y6N016414 & AFTER

Запчасти Case IH RBX563 (15.06[2]) - ELECTRIC TWINE WRAP, SHIELDS, P.I.N. Y6N016414 & AFTER (15) - KNOTTER /WRAPPER

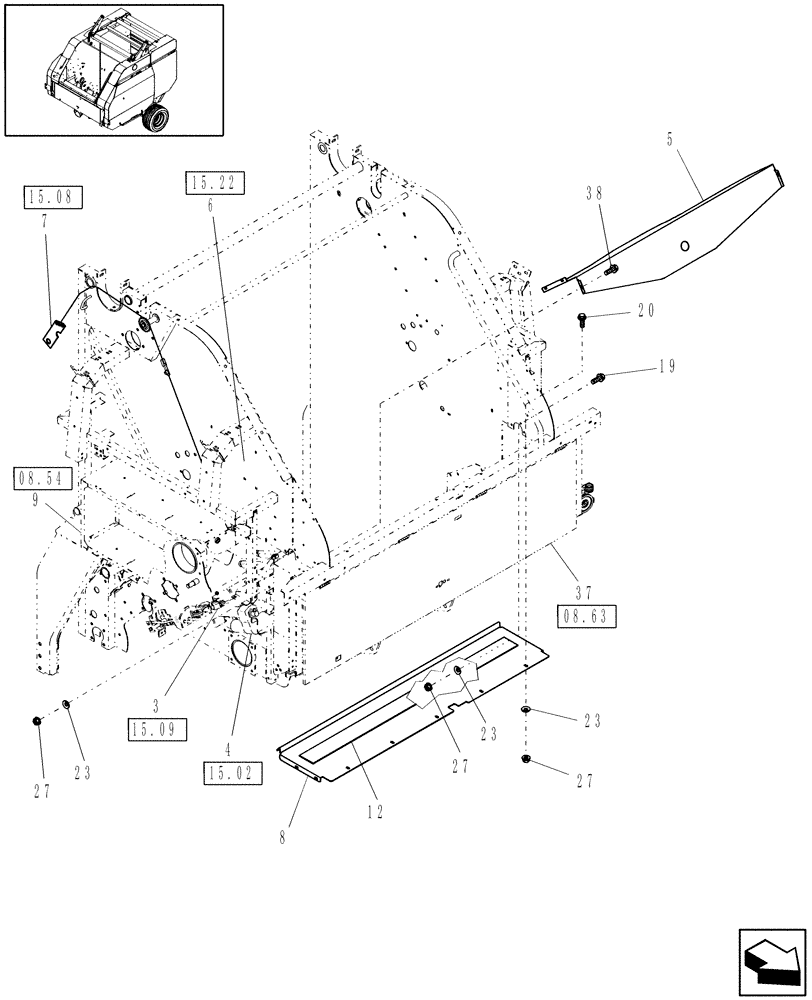

Схема запчастей Case IH RBX563 - (15.06[2]) - ELECTRIC TWINE WRAP, SHIELDS, P.I.N. Y6N016414 & AFTER (15) - KNOTTER /WRAPPER
7
23
15.08
8
23
27
20
15.22
9
27
19
15.09
27
37
5
12
4
15.02
6
08.63
23
08.54
3
38
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3

0C

ORDER COMPONENTS

Twine Counter

1шт.

4

0C

ORDER COMPONENTS

Electric Wrap, Twine

1шт.

5

87048341

SHIELD

1шт.

6

0C

ORDER COMPONENTS

Indicator

1шт.

7

0C

ORDER COMPONENTS

Electric Wrap Trip

1шт.

8

87515841

LOAD DECK

1шт.

9

0C

ORDER COMPONENTS

Twine Box

1шт.

12

86643976

ANTI-SKID STRIP

Safety, 4" x 56"

1шт.

19

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

20

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

5шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

14шт.

27

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

14шт.

37

87014359

DOOR ASSY.

Twine, Includes: Decals

1шт.

Decals are Not Illustrated in this Figure. Refer to Decal Figure for Proper Decal Location.

1шт.

38

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

7шт.
