(15.06[1]) - ELECTRIC TWINE WRAP, SHIELDS, PRIOR TO P.I.N. Y6N016413

Запчасти Case IH RBX563 (15.06[1]) - ELECTRIC TWINE WRAP, SHIELDS, PRIOR TO P.I.N. Y6N016413 (15) - KNOTTER /WRAPPER

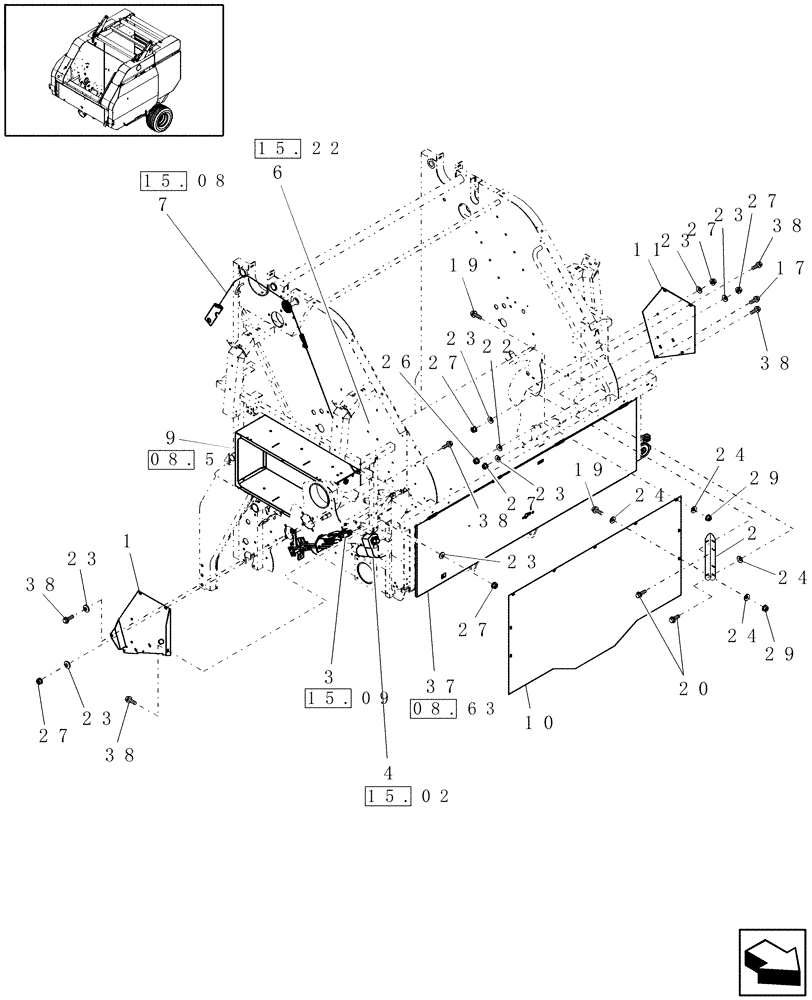

Схема запчастей Case IH RBX563 - (15.06[1]) - ELECTRIC TWINE WRAP, SHIELDS, PRIOR TO P.I.N. Y6N016413 (15) - KNOTTER /WRAPPER
17
23
23
38
4
38
3
27
29
26
11
22
27
15.22
15.09
15.02
08.63
08.54
15.08
38
38
6
24
23
29
19
20
2
38
24
27
23
24
27
27
19
9
23
24
1
23
10
23
37
7
27
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87054697

SHEET ASSY.

RH

1шт.

2

87046080

ANGLE

2шт.

3

0C

ORDER COMPONENTS

Twine Counter

1шт.

4

0C

ORDER COMPONENTS

Electric Wrap, Twine

1шт.

6

0C

ORDER COMPONENTS

Indicator

1шт.

7

0C

ORDER COMPONENTS

Electric Wrap Trip

1шт.

8

86610200

THREADED INSERT,M8 x 1.25

M8

8шт.

9

0C

ORDER COMPONENTS

Twine Box

1шт.

10

87046106

SHIELD

Rubber

1шт.

11

87054696

SHEET ASSY.

LH

1шт.

17

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.

19

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

9шт.

20

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

4шт.

22

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

15шт.

24

495-21038

WASHER,5/16"

14шт.

26

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

27

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

10шт.

29

832-46408

NUT,M8 x 1.25, Cl 8

8шт.

37

87014359

DOOR ASSY.

Twine, Includes: Decals

1шт.

Decals are Not Illustrated in this Figure. Refer to Decal Figure for Proper Decal Location.

1шт.

38

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

7шт.
