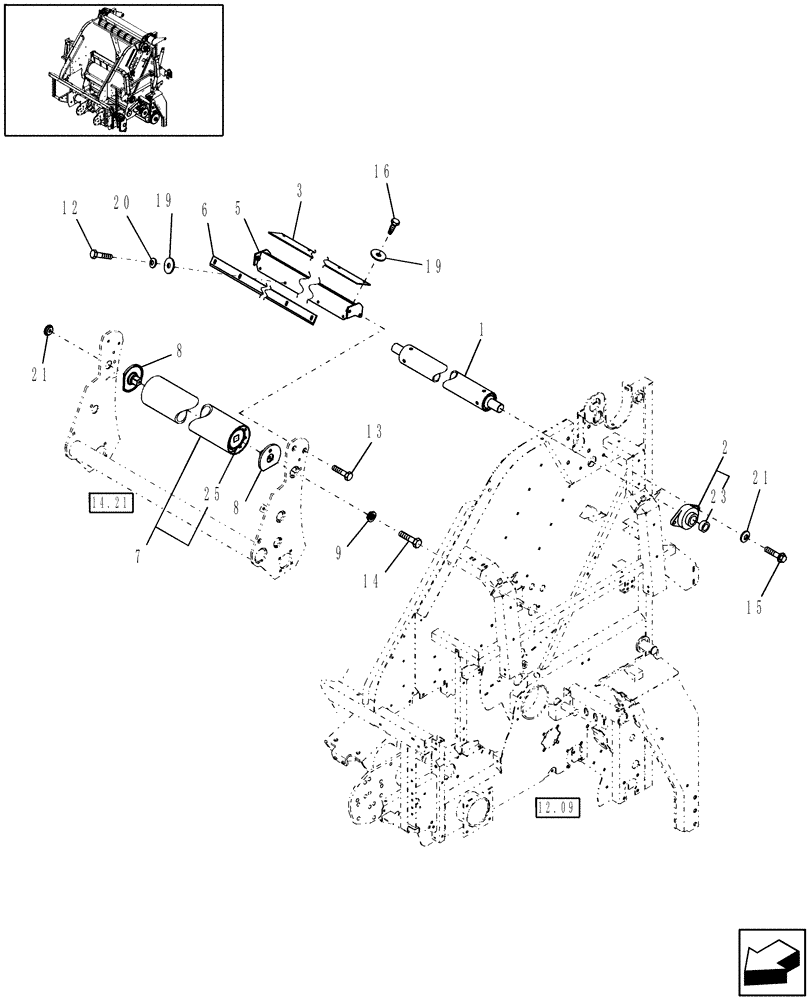

Запчасти Case IH RBX563 (14.53) - FOLLOWER, BACKWRAP ROLLER, & SCRAPER (14) - BALE CHAMBER

1

86626594

ROLL

Backwrap, Steel

1шт.

1

86635361

ROLLER

Backwrap, Rubber

1шт.

Optional Roller used in Conditions Where Belt Slippage Occurs.

1шт.

2

86590751

BEARING ASSY,40mm ID

Includes: Ref. 23

2шт.

3

9848759

BELT,127.00 mm W x 1520.00 mm L

Trash Baffle

1шт.

5

86637011

CHANNEL

1шт.

6

86636769

SCRAPER BLADE

1шт.

7

86557580

ROLLER

Sledge Follower, Includes: Ref. 22

1шт.

8

86553395

SUPPORT

2шт.

9

87030468

HUB

2шт.

12

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

10шт.

13

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

14

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

15

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

16

280519

SELF-TAP SCREW,Hex, 5/16" - 12 x 1"

10шт.

19

322

WASHER,8.73mm ID x 42.07mm OD x 3.43mm Thk

Special

20шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

21

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

23

563733

COLLAR

Lock

2шт.

24

86548282

BALL BEARING,29.41mm ID x 90mm OD x 30.2mm W, Square Bore

2шт.

Not Illustrated

1шт.

25

86553396

BEARING ASSY,30.23mm ID x 90mm OD x 30.2mm W, SQUARE BORE

Includes: Ref. 24

2шт.
