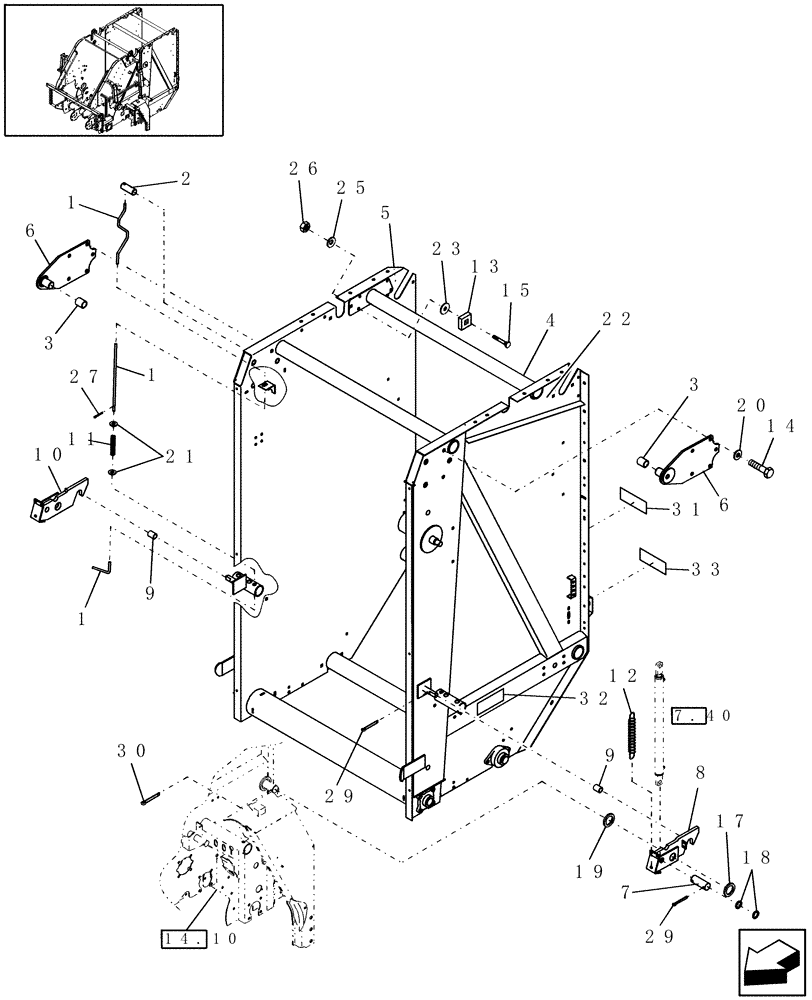

1
86637214
ROD
1шт.
2
9845448
PIN,31.7mm OD x 83.7mm L
1шт.
3
86514470
BUSHING,35.13mm ID x 41.38mm OD x 50.04mm L
2шт.
4
87019775
TAILGATE
1шт.
5
86624701
SUPPORT
RH
1шт.
6
86637243
PLATE ASSY.
2шт.
7
166065
PIN,25.4mm OD x 66.5mm L
Clevis, 1" x 2-5/8"
2шт.
8
86613584
LATCH
LH
1шт.
9
9829271
SPACER
2шт.
10
86624248
LATCH
RH
1шт.
11
86628108
SPRING
Compression
1шт.
12
86572215
SPRING,Extension, 25.58mm OD x 240.18mm L
Extension
2шт.
13
86636768
PLATE
2шт.
14
614-16040
BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd
10шт.
15
328754
CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8
2шт.
16
43139
BOLT,M10 x 1.5 x 25mm, Cl 8.8
12шт.
17
86636633
WASHER,42.86mm ID x 57.15mm OD x 1.52mm Thk
1шт.
18
495-11106
WASHER,1", SAE
2шт.
19
86603125
WASHER,40.54mm ID x 60.33mm OD x 4.8mm Thk
2-3/8" OD
4шт.
20
273127
WASHER,16.67mm ID x 28.57mm OD x 7.37mm Thk
Special, 1-1/8" OD
10шт.
21
495-21044
WASHER,3/8"
2шт.
22
86624699
SUPPORT
LH
1шт.
23
81541
WASHER,0.5" ID x 1.25" OD x 0.08" Thk
2шт.
25
140046
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
2шт.
26
9706685
NUT,M12 x 1.75, Cl 8
2шт.
27
432-812
COTTER PIN,3/4" OAL x 1/8" W
1шт.
29
432-1228
COTTER PIN,3/16" x 1 3/4"
6шт.
30
88182
COTTER PIN,1/4" OD x 2" L
2шт.
31
86631516
WARNING DECAL
English
1шт.
31
86632799
DANGER DECAL
WARNING, French
1шт.
32
86631519
DANGER DECAL
English
3шт.
32
86632802
DECAL
DANGER, French
3шт.
33
86547781
REFLECTOR,RED
Red Retroreflective
2шт.
