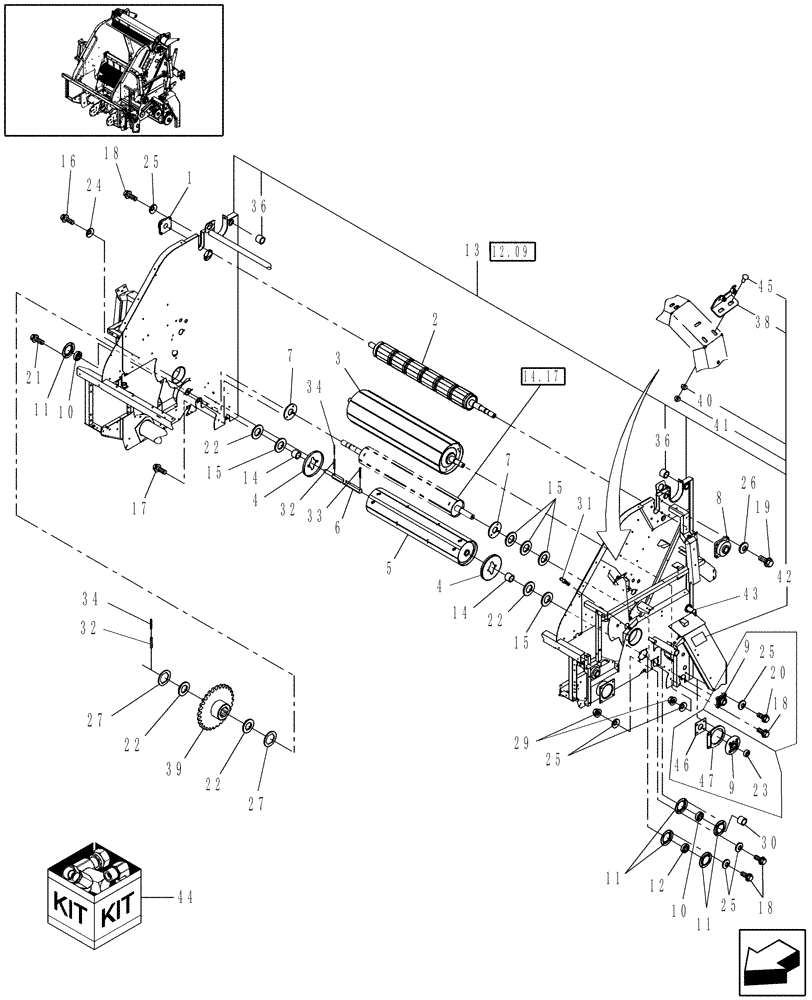

Запчасти Case IH RBX563 (14.10) - MAIN FRAME & ROLLS (14) - BALE CHAMBER

1

86609558

BEARING ASSY,45mm ID

1шт.

2

87027871

ROLL

Drive

1шт.

3

87392936

ROLLER ASSY.

Floor, Includes: Square Rods

1шт.

The Floor Roll with Square Rods Which Improves Bale Forming Replaces the Previous Floor Roll with Round Rods. When Replacing the Floor Roll with Round Rods, Order Ref. 6 for Balers P.I.N. Y6N01xxxx & After

1шт.

4

86628106

SHIELD

2шт.

5

87374668

FEED ROLLER

Fixed Dimple, Includes: Square Rods

1шт.

The Fixed Roll with Square Rods Which Improves Bale Forming Replaces the Previous Fixed Roll with Round Rods. When Replacing the Fixed Roll with Round Rods, Also Order Ref. 6 Shaft Designated as P.I.N. Y6N016414 & After.

1шт.

6

86615691

SHAFT

Use with Fixed Roll with Round Rods

1шт.

Prior to P.I.N. Y6N016413

1шт.

6

87056503

SHAFT

Use with Fixed Roll with Square Rods

1шт.

P.I.N. Y6N016414 & After

1шт.

7

86636760

RING

2шт.

8

86590752

BEARING ASSY

1шт.

9

86590753

BEARING ASSY

2шт.

Prior to P.I.N. Y6N016413

1шт.

9

87027838

BEARING ASSY

40mm ID, Round

2шт.

Bearing & Housing are Select-Fit. Bearing is Not Serviced Separately

1шт.

P.I.N. Y6N016414 & After

1шт.

10

86978603

BEARING ASSY,45mm ID x 85mm OD x 22mm W

2шт.

11

86837676

FLANGED BEARING

8шт.

12

286909

BALL BEARING,38.11mm Hex x 84.99mm OD x 30mm W

1-1/2" Hex Bore

2шт.

13

87016736

FRAME ASSY

Main, Includes: Decals

1шт.

14

86622263

HUB

2шт.

15

86619043

WASHER,45.2mm ID x 60.3mm OD x 3.68mm Thk

Plated

1шт.

16

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

17

274247

BOLT,Hex Flg, M10 x 16mm, Stainless

4шт.

18

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

18шт.

19

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

4шт.

20

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

8шт.

21

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

22

58821

WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk

.060" Thk

1шт.

23

87384472

COLLAR

2шт.

P.I.N. Y6N016414 & After

1шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

25

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

28шт.

26

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

27

87056525

WASHER

2шт.

P.I.N. Y6N016414 & After

1шт.

29

829-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 10

4шт.

30

86976003

SPACER

1шт.

31

219-417

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

32

412689

LOCK PIN,8mm OD x 50mm L, Slotted

1шт.

33

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

34

84024216

LOCK PIN,5mm OD x 50mm L, Slotted

1шт.

Install Ref. 34 Inside Ref. 32

1шт.

36

86514470

BUSHING,35.13mm ID x 41.38mm OD x 50.04mm L

2шт.

37

87039466

STRIPPER

2шт.

Welding Required

1шт.

38

87037410

HINGE

Lower, Square-Shaped

4шт.

39

87056511

SPROCKET

28T, RC60, Sledge Drive

1шт.

P.I.N. Y6N016414 & After

1шт.

40

87554101

ROLLER ASSY.

1шт.

41

87660325

SPROCKET,15T

1шт.

42

87707866

CHAIN

Includes: Ref. 48 & 49

1шт.

43

86514717

IDLER WHEEL

1шт.

44

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

2шт.

45

100038

NUT,M12 x 1.75, Cl 8

1шт.

46

86636753

PIN

Tailgate Latch Pivot

1шт.

Welding Required

1шт.

47

9840158

KIT

Floor Traction, 3" x 44"

1шт.

Optional Kit used with Ref. 3, when Core Staring Problems Occur.

1шт.

48

86643889

CONNECTING LINK

1шт.

Not Illustrated

1шт.

49

86977428

CONNECTING LINK

Offset

1шт.

Not Illustrated

1шт.
