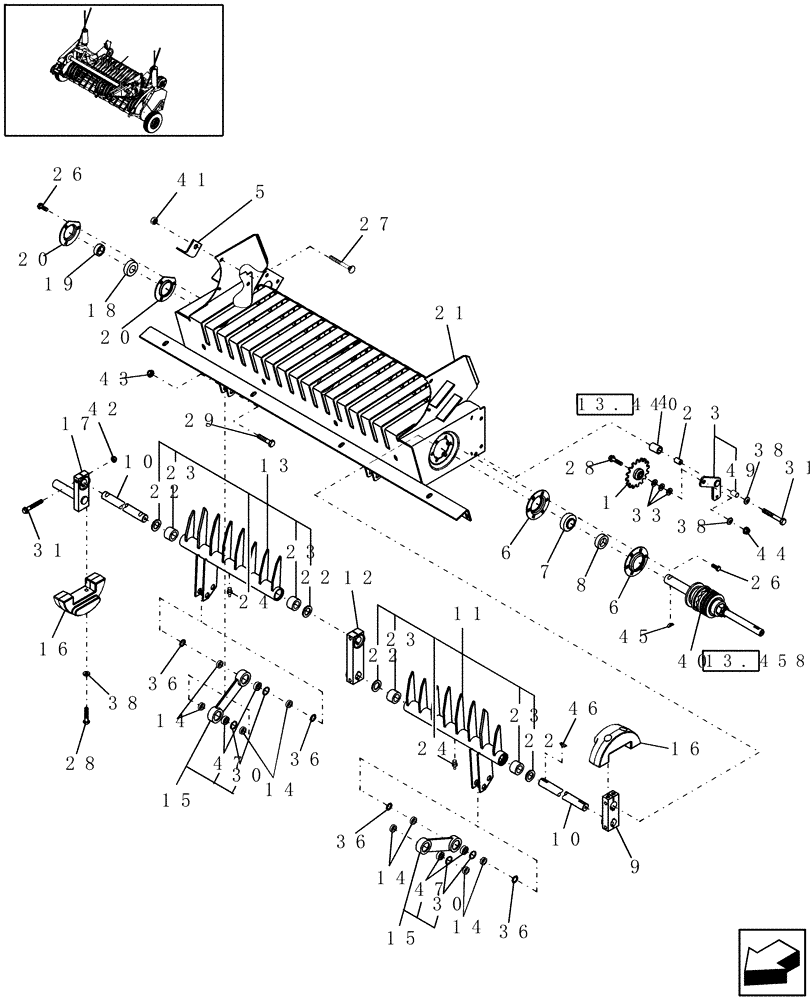

Запчасти Case IH RBX563 (13.530[1]) - STUFFER FEEDER, 2 SEGMENT, PRIOR TO P.I.N. Y6N017251 (13) - FEEDER

1

165271

DRIVEN SPROCKET

Idler

1шт.

2

86631123

SPACER,12.95mm ID x 19.05mm OD x 27mm L

1-1/16" Lg

1шт.

3

86636654

ARM

1шт.

4

86705271

SPACER,13.5mm ID x 25.4mm OD x 34mm L

1шт.

5

66463

BRACKET

Spring Mount

4шт.

6

86635012

FLANGE

Bearing

2шт.

7

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

1шт.

8

517645R11

COLLAR

Locking, Includes: Set Screw

1шт.

9

87038896

CRANK

LH

1шт.

10

87038882

SHAFT

1.50" Dia.

2шт.

11

87038885

TUBE,47.66 mm ID x 54 mm OD x 708.1 mm L

LH

1шт.

12

87038893

CRANK

1шт.

13

87038884

TUBE,47.66 mm ID x 54 mm OD x 708.1 mm L

RH

1шт.

14

718013

SPACER

8шт.

15

86634527

ARM

2шт.

16

86627115

WEIGHT

2шт.

17

87038899

CRANK

RH

1шт.

18

557995R11

COLLAR

Locking, Includes: Set Screw

1шт.

19

617668R92

BEARING ASSY,1.2505" ID x 62 mm OD x 0.9375"

Ball

1шт.

20

87758679

FLANGED BEARING

2шт.

21

87056387

FRAME

Stuffer Feeder

1шт.

22

9609085

SEAL

4шт.

23

87038966

BUSHING,220mm ID x 270mm OD x 93mm L

4шт.

24

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

26

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

9шт.

27

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

4шт.

28

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

5шт.

29

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

30

100-21175

SNAP RING,1.75", Int, #175

4шт.

31

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

6шт.

33

495-11053

WASHER,1/2", SAE

1шт.

36

600083

WASHER,19.3mm ID x 28.7mm OD x 1.36mm Thk

3/4"ID x 1-1/8"OD

8шт.

38

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

40

0C

ORDER COMPONENTS

Clutch

1шт.

41

832-46408

NUT,M8 x 1.25, Cl 8

4шт.

42

412672

NUT,Hex, M12 x 1.75, Cl 10

5шт.

43

231-41412

NUT,3/4"-10, GB

4шт.

44

825-1412

NUT,M12, Cl 8

1шт.

45

126-33

WOODRUFF KEY,#D, 5/16" x 1 1/4"

1шт.

46

87038548

WOODRUFF KEY

8mm x 11mm

1шт.

47

126-133

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

4шт.

49

87040968

BUSHING

.752" ID x .875" OD x .750" Lg.

1шт.
