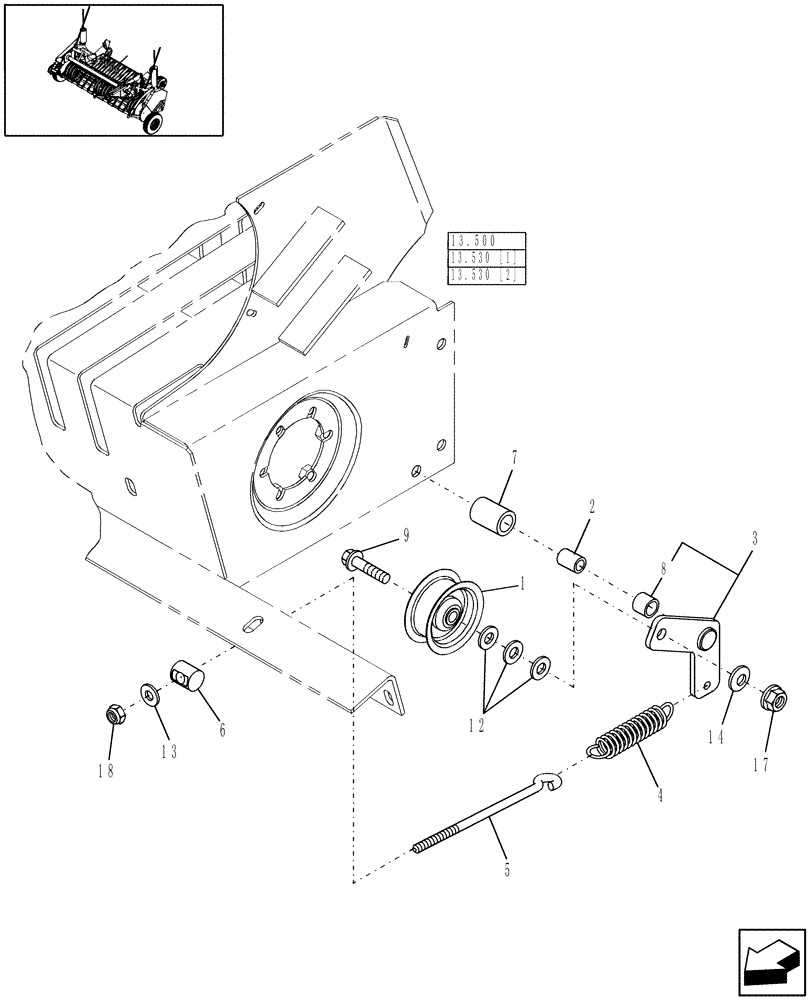

Запчасти Case IH RBX563 (13.440) - 1.8M WIDE PICKUP, PICKUP DRIVE IDLER, STUFFER FEEDER (13) - FEEDER

1

86550790

IDLER WHEEL,90mm OD

Chain

1шт.

For 15T Sprocket Idler, Refer to Fig. 13.500 or 13.530

1шт.

2

86631123

SPACER,12.95mm ID x 19.05mm OD x 27mm L

1-1/16" Lg

1шт.

3

86636654

ARM

1шт.

4

86566303

SPRING

1шт.

5

86628567

EYEBOLT

G2, 3/8"-16 x 8-3/4"

1шт.

6

36989

ROCKER ARM

1шт.

7

86705271

SPACER,13.5mm ID x 25.4mm OD x 34mm L

1шт.

8

87040968

BUSHING

.752" ID x .875" OD x .750" Lg.

1шт.

9

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

1шт.

12

495-11053

WASHER,1/2", SAE

1шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

14

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

17

825-1412

NUT,M12, Cl 8

1шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.
