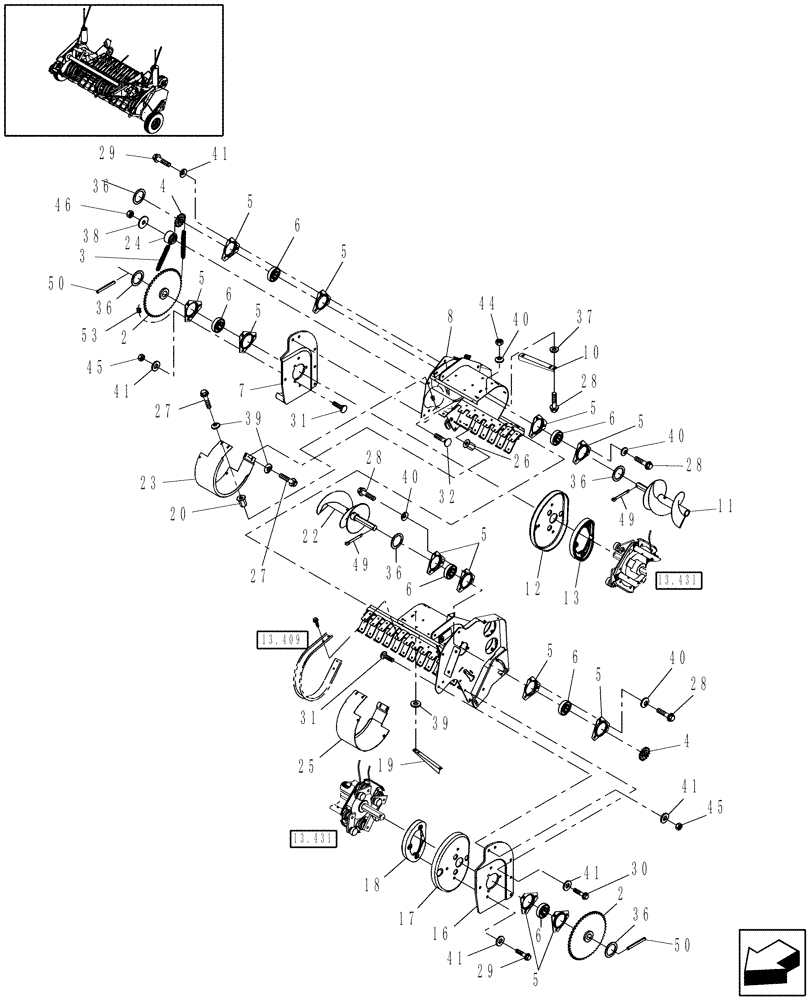

Запчасти Case IH RBX562 (13.421) - 2M WIDE PICKUP W/ STUFFER FEEDER (13) - FEEDER

2

86624713

SPROCKET

48T

2шт.

3

87023062

CHAIN (AG)

Roller, #50, 5/8"-pitch, 77 Pitches

1шт.

For use w/ 14T Sprocket

1шт.

3

9849661

CHAIN

Roller, #50, 5/8"-pitch, 76 Pitches, Includes Ref. 52

1шт.

For use w/ 13T Sprocket

1шт.

4

86624712

SPROCKET

14T

2шт.

4

87026284

SPROCKET

13T

2шт.

Use this Sprocket for Faster Auger Speed to Reduce Plugging.

1шт.

5

86620026

FLANGED BEARING

12шт.

6

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

6шт.

7

86606411

SUPPORT

RH

1шт.

8

0C

ORDER COMPONENTS

2M Wide Pickup

1шт.

9

86622143

SPRING

2шт.

10

86633239

ANGLE

RH

1шт.

11

86635998

AUGER

RH

1шт.

12

86637746

CAM

RH, Outer

1шт.

13

86637695

CAM

RH, Inner

1шт.

16

86606410

SUPPORT

LH

1шт.

17

86636966

CAM

LH, Outer

1шт.

18

86636967

CAM

LH, Inner

1шт.

19

86633238

ANGLE

LH

1шт.

20

86610198

INSERT,M6 x 1

Threaded, M6

4шт.

21

86643381

GUARD

31шт.

22

86635996

AUGER

LH

1шт.

23

86626559

GUARD

RH

1шт.

24

86613200

IDLER,89mm OD x 47.7mm W

Eccentric, Nylon

1шт.

25

86625888

GUARD

LH

1шт.

26

86610199

INSERT

NUT Threaded, M6

4шт.

27

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

8шт.

28

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

6шт.

29

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

18шт.

30

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

31

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

12шт.

32

811-16050

CARRIAGE BOLT,Sht Sq Nk, M16 x 2 x 50mm, Cl 8.8

1шт.

33

87039762

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"

96шт.

35

48917

WASHER

15/32" ID

2шт.

36

87022926

WASHER,35.05mm ID x 48.01mm OD x 2.14mm Thk

.075" Thick

8шт.

37

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

1шт.

38

495-11066

WASHER,5/8", SAE

1шт.

39

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

40

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

41

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

34шт.

42

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

44

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

6шт.

45

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

12шт.

46

825-1416

NUT,M16, Cl 8

1шт.

49

164086

COTTER PIN

Hardened, 9/64" x 1-1/2"

2шт.

50

88529

LOCK PIN,5.56mm OD x 44.45mm L, Slotted

2шт.

52

42472

CONNECTING LINK

1шт.

Not Illustrated

1шт.

53

25816

OFFSET LINK

Roller, RC 50, Cotter Style

1шт.

Not Illustrated

1шт.
