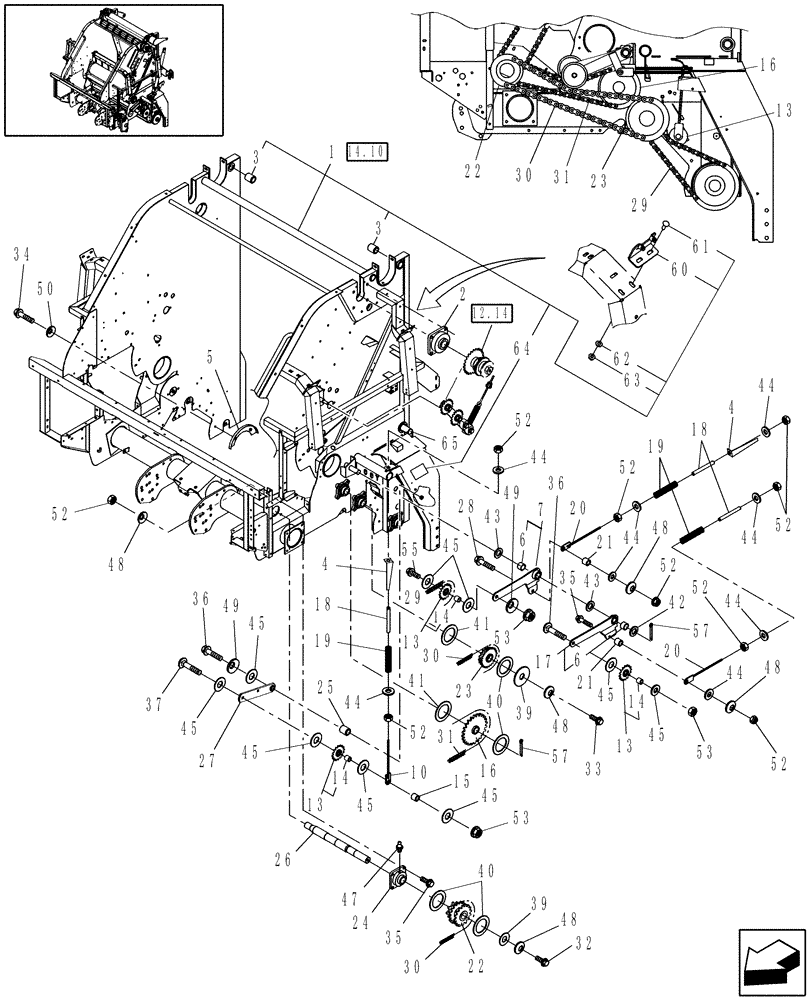

Запчасти Case IH RBX562 (12.09) - MAIN FRAME & DRIVE, LH (12) - MAIN FRAME

1

87016736

FRAME ASSY

Main, Includes: Decals

1шт.

2

86590752

BEARING ASSY

1шт.

3

86514470

BUSHING,35.13mm ID x 41.38mm OD x 50.04mm L

2шт.

4

86643093

INDICATOR

2шт.

5

86637198

HALF-DISC

2шт.

6

27639

BUSHING,31.83mm ID x 38.19mm OD x 25.4mm L

2шт.

7

86632214

ARM

Includes: Ref. 6

1шт.

10

87714825

BOLT,M12 x 1.75 x 362mm L

1шт.

13

NS

NOT SERVICED

SPROCKET 13T, Plastic, Production Only {87050058}

3шт.

Steel Service Sprocket (66614) & Plastic Production Sprocket are Interchangable.

1шт.

13

66614

SPROCKET,RC80, 13T

13T, Steel, Service Only, Includes: Bearing 144819C91

3шт.

Steel Service Sprocket (66614) & Plastic Production Sprocket are Interchangable.

1шт.

14

144819C91

BEARING

1шт.

15

86529376

SPACER

1шт.

16

86610108

SPROCKET

25 T, RC 80

1шт.

17

86632217

LIFT ARM

1шт.

18

86637258

TUBE,19.05 mm OD x 228.60 mm L

3шт.

19

86618710

SPRING,1-3/8" OD x 8-5/8" L

Compression, 8-5/8" L

3шт.

20

86633971

BOLT,M12 x 1.75 x 377.5mm L

Linkage, M12 x 1.75 Threaded

2шт.

21

45455

SPACER,13.5mm ID x 25.4mm OD x 9.5mm Thk

17/32" ID x 1" OD x 3/8"

2шт.

22

86613345

SPROCKET

Triple, (1) 13T, (2) 18T, RC 80

1шт.

23

86613346

SPROCKET

Double, (1) 25T, (1) 17T, RC 80

1шт.

24

86609558

BEARING ASSY,45mm ID

1шт.

25

86614030

SPACER

30mm

1шт.

26

86604822

SHAFT

1шт.

27

86611436

ARM

1шт.

29

86549269

CHAIN,RC80, 64 Links x 25.4mm = 1625.6mm

Roller, RC 80, 64 Pitches, Includes: Ref. 58

1шт.

30

9804061

CHAIN,80, 84 Links x 25.4mm = 2133.6mm

Roller, RC 80, 84 Pitches, , Includes: Ref. 58

1шт.

31

86611455

CHAIN,80P, 67 Links x 25.4mm = 1701.8mm

RC 80, 67 Total Pitches, Includes: Ref. 51 & 58

1шт.

32

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

1шт.

33

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

1шт.

34

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

35

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

5шт.

36

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

3шт.

37

814-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8

2шт.

38

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

1шт.

39

694478

WASHER,13.5mm ID x 57.15mm OD x 4.8mm Thk

Special, Hardened

3шт.

40

58821

WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk

Special

1шт.

41

86619043

WASHER,45.2mm ID x 60.3mm OD x 3.68mm Thk

1шт.

42

27696

WASHER,1.281" ID x 2" OD x .060" Thk

Special

1шт.

43

142656

WASHER,33.35mm ID x 47.63mm OD x 3.43mm Thk

1-1/4"

1шт.

44

495-21056

WASHER,1/2"

8шт.

45

495-11066

WASHER,5/8", SAE

1шт.

46

27697

WASHER,16.66mm ID x 27mm OD x 1.52mm Thk

1шт.

47

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

48

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

49

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

50

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

51

86977428

CONNECTING LINK

Offset

1шт.

Not Illustrated

1шт.

52

825-1412

NUT,M12, Cl 8

12шт.

53

832-46416

NUT,M16 x 2, Cl 8

3шт.

55

814-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 8.8

1шт.

57

432-1232

COTTER PIN,3/16" OD x 2" L

2шт.

58

9620569

CONNECTING LINK,RC80, 1 Link x 25.4mm = 25.4mm L

1шт.

Not Illustrated

1шт.

60

87037410

HINGE

Lower, Square-Shaped

4шт.

P.I.N. HBJ039360 & After

1шт.

61

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

8шт.

P.I.N. HBJ039360 & After

1шт.

62

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

P.I.N. HBJ039360 & After

1шт.

63

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

8шт.

P.I.N. HBJ039360 & After

1шт.

64

86631518

DANGER DECAL

English

2шт.

P.I.N. HBJ039360 & After

1шт.

64

86632801

DECAL

DANGER, French

2шт.

P.I.N. HBJ039360 & After

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary

1шт.

65

86636753

PIN

Tailgate Latch Pivot

1шт.

Welding Required

1шт.
