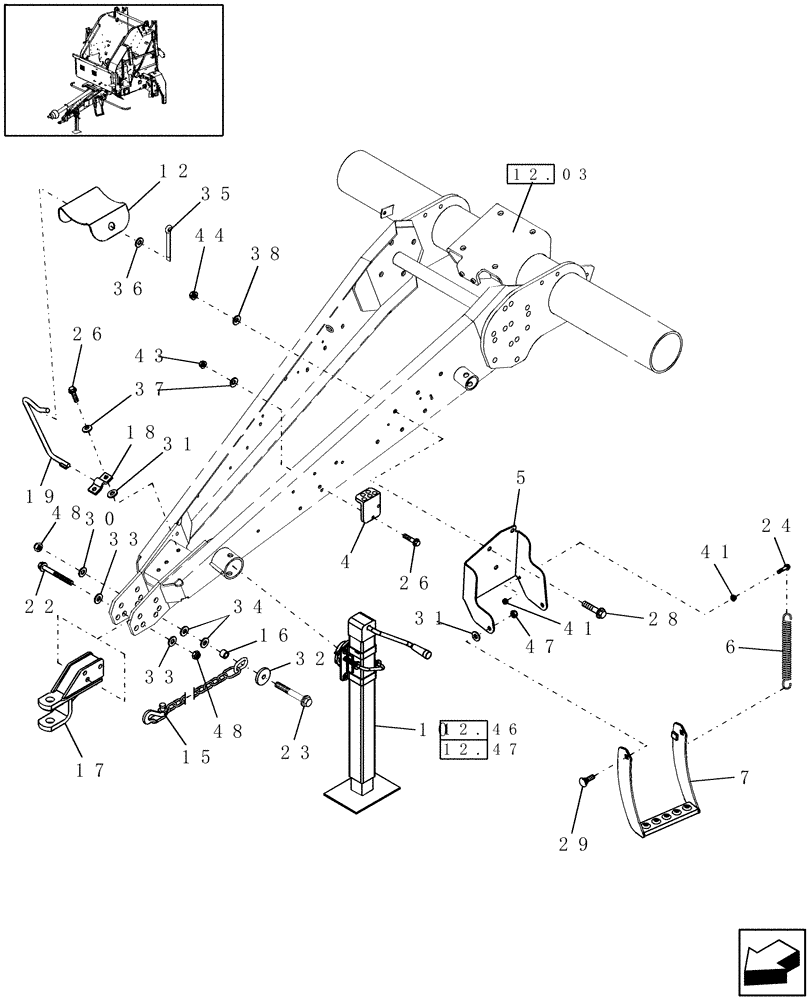

Запчасти Case IH RBX562 (12.04) - JACK & STEP, NORTH AMERICA (12) - MAIN FRAME

4

87023182

STEP

1шт.

5

86640703

SUPPORT

1шт.

6

27310

SPRING

1шт.

7

86642808

STEP

1шт.

10

86611471

JACK

Standard Duty, All North America Units Except Rotor Units.

1шт.

Components are N.S.S.

1шт.

10

86643129

JACK

Heavy Duty, North America Rotor Units / All Europe & R.O.W. Units

1шт.

Components are N.S.S.

1шт.

12

87017977

PLATE

1шт.

15

850116

CHAIN

Safety

1шт.

16

86607695

SPACER,17.48mm ID x 28.6mm OD x 20.6mm L

1шт.

17

87017041

HITCH

Clevis

1шт.

18

86977230

PLATE

1шт.

19

86619421

ROD

1шт.

22

814-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

2шт.

23

362573

BOLT,Hex, M16 x 150mm, Cl 8.8

1шт.

24

844-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

1шт.

26

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

28

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

29

811-12025

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 25mm, Cl 8.8

2шт.

30

86528652

WASHER,16.28mm ID x 38.35mm OD x 4mm Thk

1шт.

31

495-21050

WASHER,7/16"

4шт.

32

636422

WASHER,16.66mm ID x 69.85mm OD

21/32" ID x 2-3/4" OD x 3/8" Thk

1шт.

33

64053

WASHER,16.9mm ID x 38.55mm OD x 4mm Thk

Special, Hardened

4шт.

34

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

Hardened, 5/8"

2шт.

35

432-616

COTTER PIN,3/32" x 1"

1шт.

36

86622500

WASHER,13.49mm ID x 22.2mm OD x 1.36mm Thk

Spacer

1шт.

37

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

38

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

41

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

43

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

2шт.

44

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

47

832-46412

NUT,M12 x 1.75, Cl 8

2шт.

48

832-46416

NUT,M16 x 2, Cl 8

3шт.
