(08.67) - SHIELDS, DOOR, NET

Запчасти Case IH RBX562 (08.67) - SHIELDS, DOOR, NET (08) - SHEET METAL/DECALS

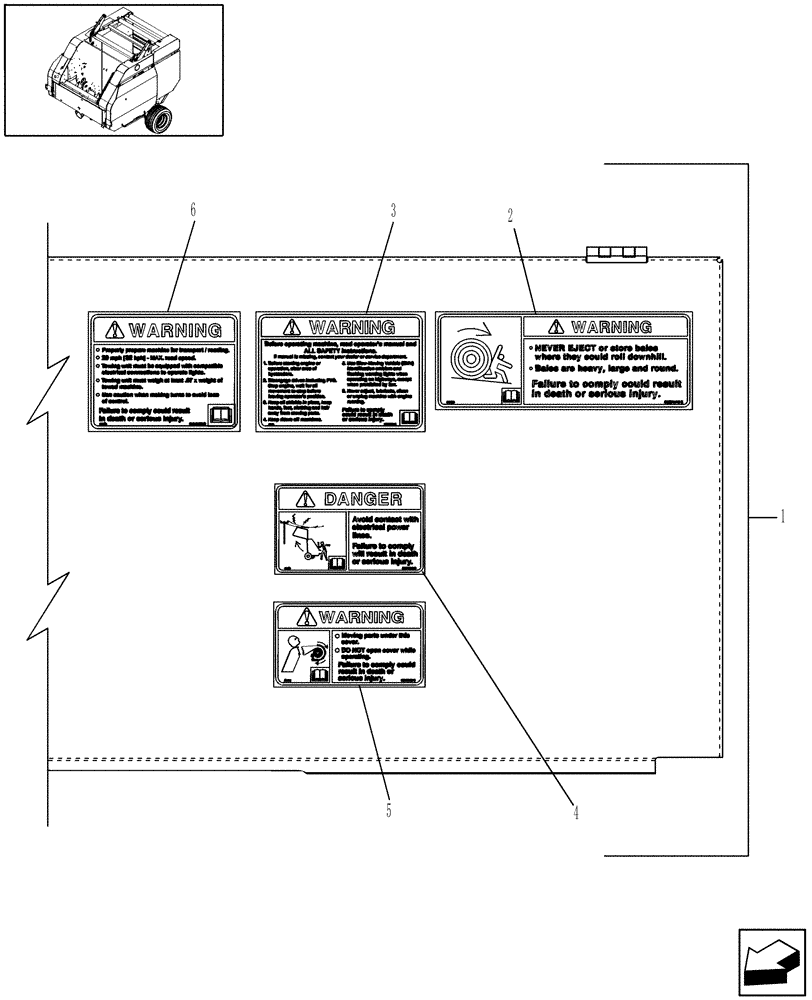

Схема запчастей Case IH RBX562 - (08.67) - SHIELDS, DOOR, NET (08) - SHEET METAL/DECALS
6
5
4
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87014361

DOOR ASSY.

Net

1шт.

2

84337031

DANGER DECAL

English

1шт.

2

84346730

DANGER DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary

1шт.

3

86622073

WARNING DECAL

English

1шт.

3

86622074

WARNING DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary

1шт.

4

86632699

WARNING DECAL

English

1шт.

4

86632803

WARNING DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary

1шт.

5

87014378

WARNING DECAL

Electric Risk, English

1шт.

5

87014380

WARNING DECAL

Electric Risk, French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary

1шт.

6

87041060

WARNING DECAL

English

1шт.

6

87042011

WARNING DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary

1шт.
