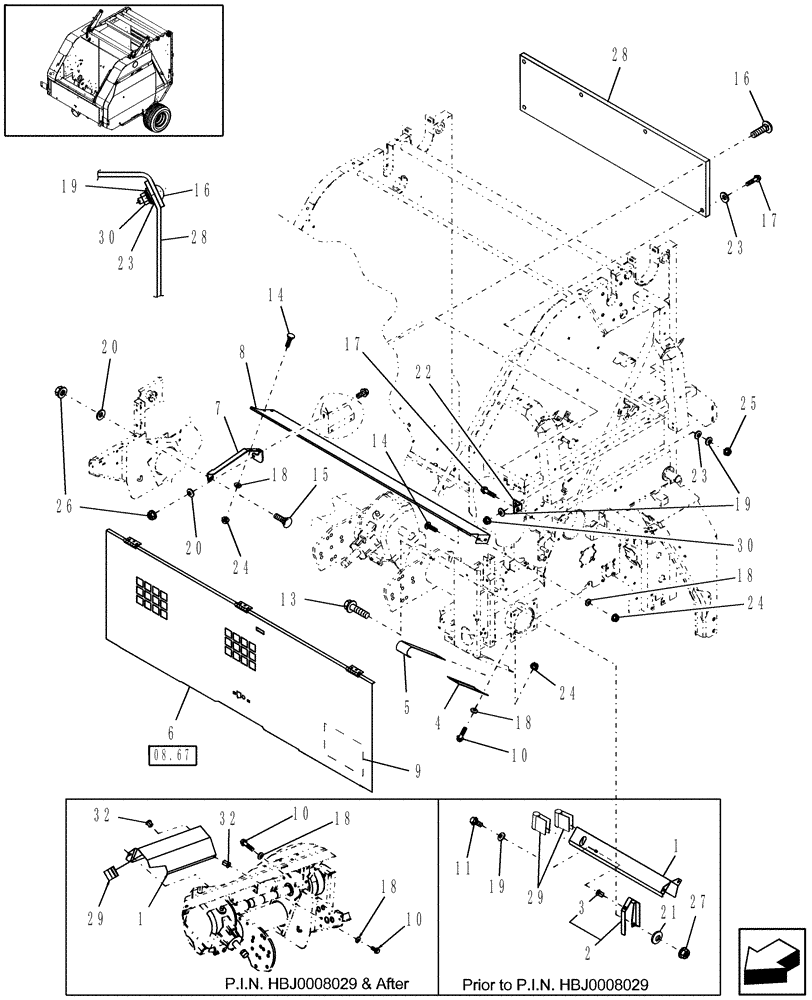

Запчасти Case IH RBX562 (08.61) - SHIELDS, NET (08) - SHEET METAL/DECALS

1

87038558

SHIELD

Includes: Ref. 31

1шт.

North America Only

1шт.

Prior to P.I.N. HBJ0008029

1шт.

1

86636401

SHIELD

1шт.

Europe & R.O.W.

1шт.

Prior to P.I.N. HBJ0008029

1шт.

1

87037948

SHIELD

Includes: Ref. 31

1шт.

North America Only

1шт.

P.I.N. HBJ0008029 & After

1шт.

1

87034067

SHIELD

1шт.

Europe & R.O.W.

1шт.

P.I.N. HBJ0008029 & After

1шт.

2

86636403

MOUNTING PARTS

Includes: Ref. 3

1шт.

Prior to P.I.N. HBJ0008029

1шт.

3

86610200

THREADED INSERT,M8 x 1.25

M8

2шт.

Prior to P.I.N. HBJ0008029

1шт.

4

86631554

CHANNEL

1шт.

5

86631522

SHEET METAL

Stuffer Tool

1шт.

6

87014361

DOOR ASSY.

Net

1шт.

7

86636528

BRACKET

1шт.

8

86632714

SHIELD

1шт.

9

86642356

DECAL

Net Routing

1шт.

10

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

6шт.

11

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

Prior to P.I.N. HBJ0008029

1шт.

13

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

Prior to P.I.N. HBJ0008029

1шт.

14

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

4шт.

15

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

1шт.

16

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

5шт.

17

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

18

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

10шт.

19

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

21

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

Prior to P.I.N. HBJ0008029

1шт.

22

86626584

BRACKET

2шт.

23

495-21038

WASHER,5/16"

9шт.

24

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

8шт.

25

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

26

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

2шт.

27

825-1412

NUT,M12, Cl 8

2шт.

Prior to P.I.N. HBJ0008029

1шт.

28

86635162

SHIELD,Rubber Coated

1шт.

29

87019330

RUBBER SEAL

10'

1шт.

30

832-46408

NUT,M8 x 1.25, Cl 8

7шт.

31

87037375

WARNING DECAL

Net Knife, English

1шт.

Decals are Not Illustrated in this Figure. Refer to Decal Figure for Proper Decal Location.

1шт.

31

87037730

DECAL

WARNING, Net Knife, French

1шт.

Decals are Not Illustrated in this Figure. Refer to Decal Figure for Proper Decal Location.

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary

1шт.

32

86610198

INSERT,M6 x 1

Threaded, M6

2шт.
