Запчасти Case IH RBX562 (08.57) - SHIELDS, BALE COMMAND™, TWINE (08) - SHEET METAL/DECALS

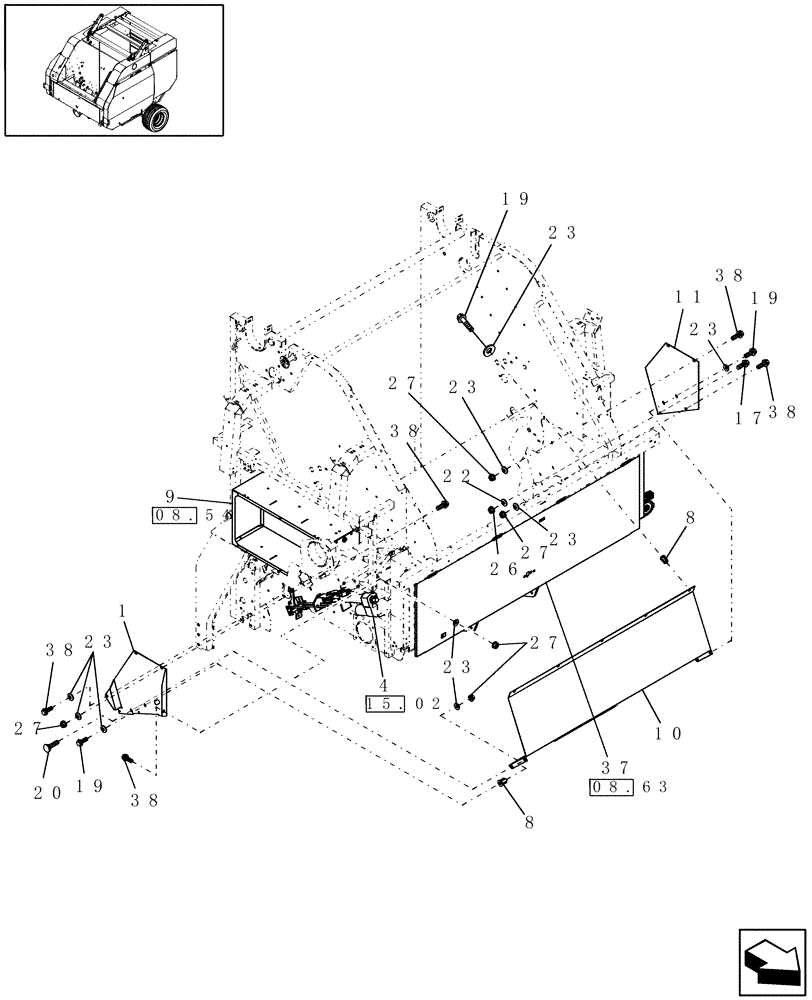

Схема запчастей Case IH RBX562 - (08.57) - SHIELDS, BALE COMMAND™, TWINE (08) - SHEET METAL/DECALS
27
38
26
19
27
27
4
10
38
19
17
1
8
23
11
23
08.63
20
9
22
27
37
23
23
38
8
38
19
23
15.02
23
08.54
38
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86637364

SHEET

1шт.

4

0C

ORDER COMPONENTS

Electric Twine Wrap

1шт.

8

86610200

THREADED INSERT,M8 x 1.25

M8

8шт.

9

0C

ORDER COMPONENTS

Twine Box

1шт.

10

86900410

SHIELD

1шт.

11

86637363

SHEET

1шт.

17

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.

19

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

7шт.

20

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

1шт.

22

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

15шт.

26

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

27

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

7шт.

37

87014359

DOOR ASSY.

Includes: Decals

1шт.

Decals are Not Illustrated in this Figure. Refer to Decal Figure for Proper Decal Location.

1шт.

38

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

7шт.
