Запчасти Case IH RBX562 (06.24) - ELECTRICAL, BALE SHAPE (06) - ELECTRICAL SYSTEMS

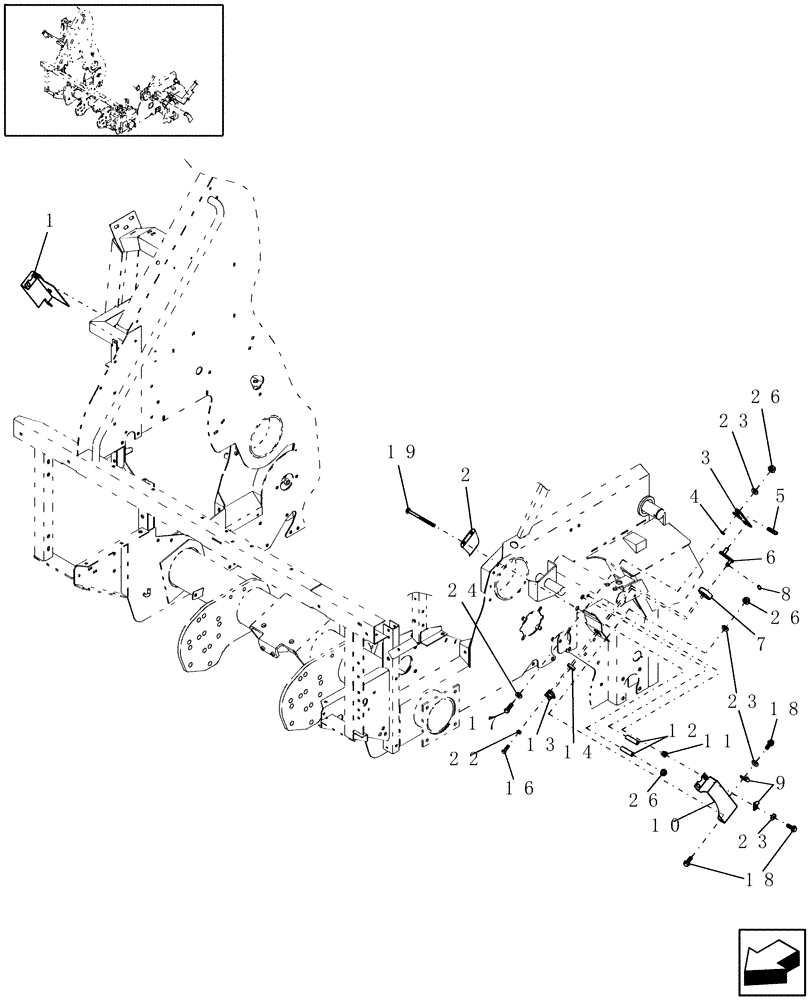

Схема запчастей Case IH RBX562 - (06.24) - ELECTRICAL, BALE SHAPE (06) - ELECTRICAL SYSTEMS
3
17
8
23
7
18
9
24
18
11
14
22
26
4
26
13
5
16
6
23
19
26
2
23
12
1
10

Артикул

Название

Примечание

Количество

1

86511226

SHIELD

1шт.

2

86637389

SPRING

2шт.

3

86637391

ARM

2шт.

4

177822

SPACER,8.33mm ID x 12.7mm OD x 4.32mm Thk

21/64" ID x .500" OD x .170" Lg.

2шт.

5

217465

SPRING

Extension

2шт.

6

86619565

SUPPORT

2шт.

7

86509329

MOUNTING PLATE

2шт.

8

86000439

SNAP RING,0.288" ID x 0.66" OD x 0.037" Thk, External

2шт.

9

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

4шт.

10

86506979

SHIELD

1шт.

11

86610200

THREADED INSERT,M8 x 1.25

M8

2шт.

12

718782

SPACER

4шт.

13

86977396

POTENTIOMETER,3000 Ohm, 16 VDC

2шт.

14

86613601

WASHER,14.88mm ID x 28.69mm OD x 7.35mm Thk

Urethane

2шт.

16

614-4020

BOLT,Hex, M4 x 0.7 x 20mm, Cl 8.8, Full Thd

4шт.

17

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

18

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

6шт.

19

120040

CARRIAGE BOLT,Short Nk, M8 x 80mm, Cl 8.8

4шт.

22

493-41020

LOCK WASHER,Ext Tooth, #10

4шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

24

495-21038

WASHER,5/16"

4шт.

26

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

8шт.

Выбрано товаров: 22
